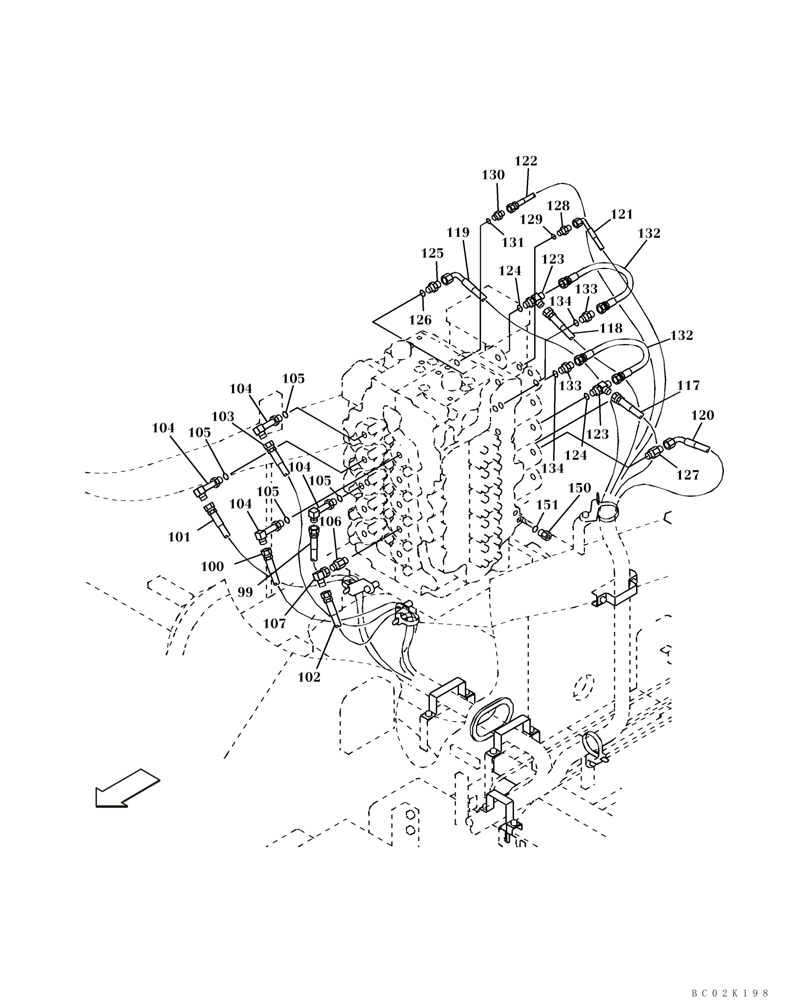

Запчасти Case CX460 (08-34) - PILOT CONTROL LINES, CONTROL VALVE - MODELS WITHOUT LOAD HOLD (08) - HYDRAULICS

99

157969A1

HOSE

See Figure 08-27

1шт.

100

157969A1

HOSE

See Figure 08-27

1шт.

101

157969A1

HOSE

See Figure 08-26

1шт.

102

157967A1

HOSE

2750 mm (108-1/4 in); See Figure 08-26

1шт.

103

157969A1

HOSE

See Figure 08-26

1шт.

104

KHJ1442

ELBOW

Incl. 105

4шт.

105

154475A1

O-RING

1шт.

106

KAJ2851

ADAPTER

1шт.

107

153526A1

ELBOW

1шт.

117

164230A1

HOSE ASSY.

See Figure 08-27

1шт.

118

152771A1

HOSE ASSY.

See Figure 08-27

1шт.

119

KMJ1829

HOSE

See Figure 08-26

1шт.

120

159231A1

HYDRAULIC HOSE

See Figure 08-26

1шт.

121

162193A1

HOSE ASSY.

See Figure 08-26

1шт.

122

KHJ1766

HOSE

See Figure 08-27

1шт.

123

164107A1

TEE,3/8" ORB x 3/8" - 19 NPT x 3/8" - 19 NPT

Incl. 124

2шт.

124

154475A1

O-RING

1шт.

125

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

1шт.

126

154475A1

O-RING

1шт.

128

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 129

1шт.

129

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

130

162366A1

ADAPTER

Incl. 131

1шт.

131

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

132

KRJ5441

HYDRAULIC HOSE,9.50 mm ID x 400.00 mm

2шт.

133

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 134

2шт.

134

154475A1

O-RING

1шт.

150

159026A1

SOCKET

Incl. 151

1шт.

151

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.
