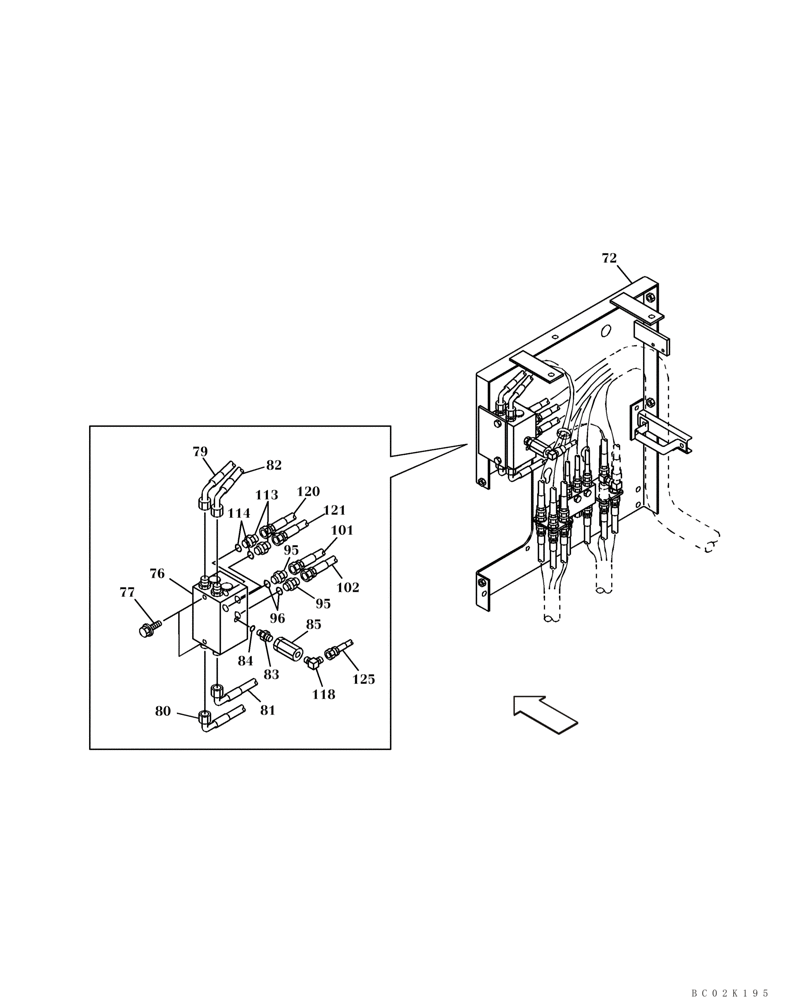

Запчасти Case CX460 (08-31) - PILOT CONTROL LINES, PARTITION - MODELS WITH LOAD HOLD (08) - HYDRAULICS

72

KTJ2107

BRACKET

1шт.

76

KTJ2242

VALVE, CUSHION

See Figure 08-30, 08-90, If Used

1шт.

76a

KTJ11150

VALVE PRESSURE RELIE

See Figure 08-30, 08-90A, If Used

1шт.

77

166052A1

BOLT

2шт.

79

KMJ1836

HOSE

See Figure 08-30

1шт.

80

162835A1

HOSE ASSY.

600 mm (23-5/8 in); See Figure 08-30

1шт.

81

KTJ1639

HOSE

See Figure 08-30

1шт.

82

KRJ3569

HOSE

See Figure 08-30

1шт.

83

152899A1

HYD CONNECTOR

Incl. 84

1шт.

84

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

85

151552A1

FILTER

1шт.

95

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 96

2шт.

96

154475A1

O-RING

1шт.

101

157969A1

HOSE

See Figure 08-38

1шт.

102

157969A1

HOSE

See Figure 08-38

1шт.

113

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 114

2шт.

114

154475A1

O-RING

1шт.

118

153596A1

ADAPTER

1шт.

120

164230A1

HOSE ASSY.

See Figure 08-38

1шт.

121

152771A1

HOSE ASSY.

3000 mm (118-1/8 in); See Figure 08-38

1шт.

125

KHJ1766

HOSE

See Figure 08-38

1шт.
