(08-29) - PILOT CONTROL LINES, PARTITION - MODELS WITH CONTROL SELECTOR VALVE

Запчасти Case CX460 (08-29) - PILOT CONTROL LINES, PARTITION - MODELS WITH CONTROL SELECTOR VALVE (08) - HYDRAULICS

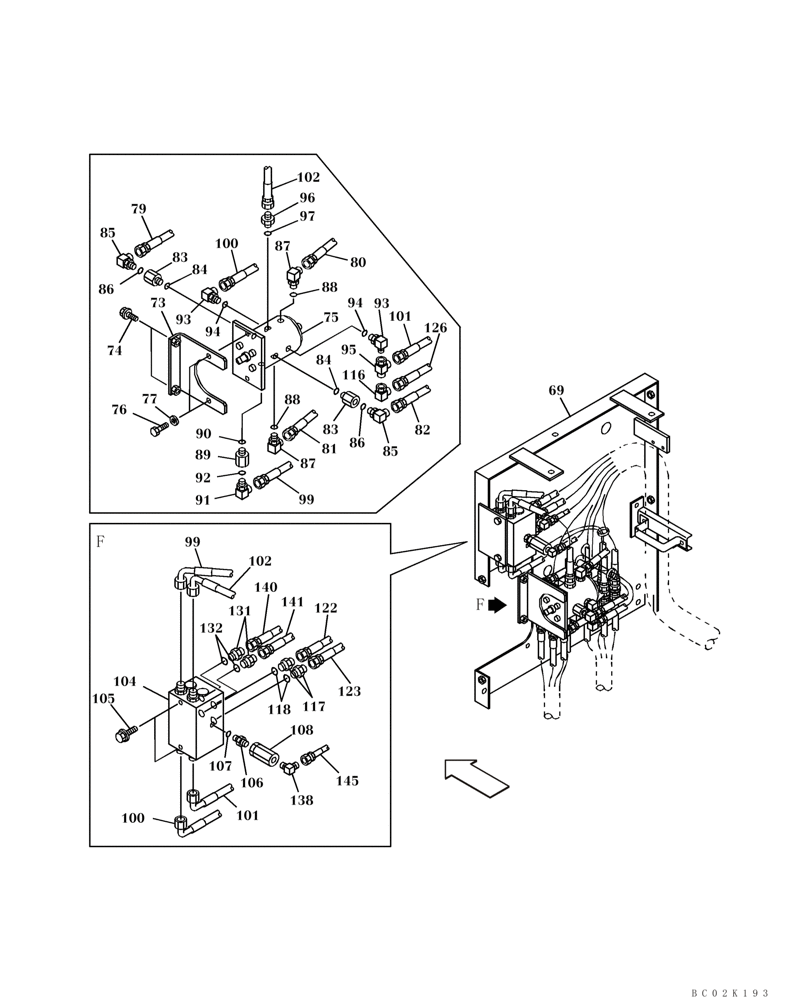

Схема запчастей Case CX460 - (08-29) - PILOT CONTROL LINES, PARTITION - MODELS WITH CONTROL SELECTOR VALVE (08) - HYDRAULICS
f
76
84
87
87
79
126
85
141
88
94
69
105
118
101
101
94
81
82
95
77
107
99
85
93
100
75
92
86
86
83
108
80
74
102
117
f
131
99
102
100
91
84
88
73
106
122
97
bc02k193
123
83
104
96
89
116
138
140
93
90
145
132
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

69

KTJ2107

BRACKET

1шт.

73

KNJ2946

BRACKET

1шт.

74

166052A1

BOLT

2шт.

75

KHJ2184

VALVE

See Figure 08-28; 08-88

1шт.

76

167836A1

BOLT,High Strength, M10 x 25mm

2шт.

77

150409A1

WASHER

2шт.

79

KHJ1306

HYDRAULIC HOSE,9.52 mm ID x 550.00 mm

See Figure 08-28

1шт.

80

167871A1

HYDRAULIC HOSE,19.00 mm ID x 700.00 mm

See Figure 08-28

1шт.

81

KHJ1306

HYDRAULIC HOSE,9.52 mm ID x 550.00 mm

See Figure 08-28

1шт.

82

167871A1

HYDRAULIC HOSE,19.00 mm ID x 700.00 mm

See Figure 08-28

1шт.

83

KHJ1584

UNION

Incl. 84

2шт.

84

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

85

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl. 86

2шт.

86

154475A1

O-RING

1шт.

87

153559A1

ELBOW

Incl. 88

2шт.

88

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

89

162525A1

STUD

Incl. 90

1шт.

90

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

91

167517A1

TEE

Incl. 92

1шт.

92

154475A1

O-RING

1шт.

93

153559A1

ELBOW

Incl. 94

2шт.

94

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

95

KHJ2234

TEE

1шт.

96

152747A1

ADAPTER

Incl. 97

1шт.

97

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

99

KHJ1169

HYDRAULIC HOSE,9.52 mm ID x 2400.00 mm

1шт.

100

KHJ1193

HYDRAULIC HOSE,9.52 mm ID x 450.00 mm

1шт.

101

KHJ1062

HYDRAULIC HOSE,9.52 mm ID x 550.00 mm

1шт.

102

KHJ1168

HYDRAULIC HOSE,9.52 mm ID x 350.00 mm

1шт.

104

KTJ2288

VALVE, CUSHION

See Figure 08-28, 08-89

1шт.

104a

KTJ11150

VALVE PRESSURE RELIE

See Figure 08-28, 08-89A

1шт.

105

166052A1

BOLT

2шт.

106

152899A1

HYD CONNECTOR

Incl. 100

1шт.

107

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

108

151552A1

FILTER

1шт.

116

153526A1

ELBOW

1шт.

117

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 118

2шт.

118

154475A1

O-RING

1шт.

122

157969A1

HOSE

See Figure 08-36

1шт.

123

157969A1

HOSE

See Figure 08-36

1шт.

126

157969A1

HOSE

See Figure 08-36

1шт.

131

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 132

2шт.

132

154475A1

O-RING

1шт.

138

153596A1

ADAPTER

1шт.

140

164230A1

HOSE ASSY.

See Figure 08-36

1шт.

141

152771A1

HOSE ASSY.

See Figure 08-36

1шт.

145

KHJ1766

HOSE

See Figure 08-36

1шт.

Выбрано товаров: 47
