(08-27) - PILOT CONTROL LINES, PARTITION - MODELS WITHOUT LOAD HOLD

Запчасти Case CX460 (08-27) - PILOT CONTROL LINES, PARTITION - MODELS WITHOUT LOAD HOLD (08) - HYDRAULICS

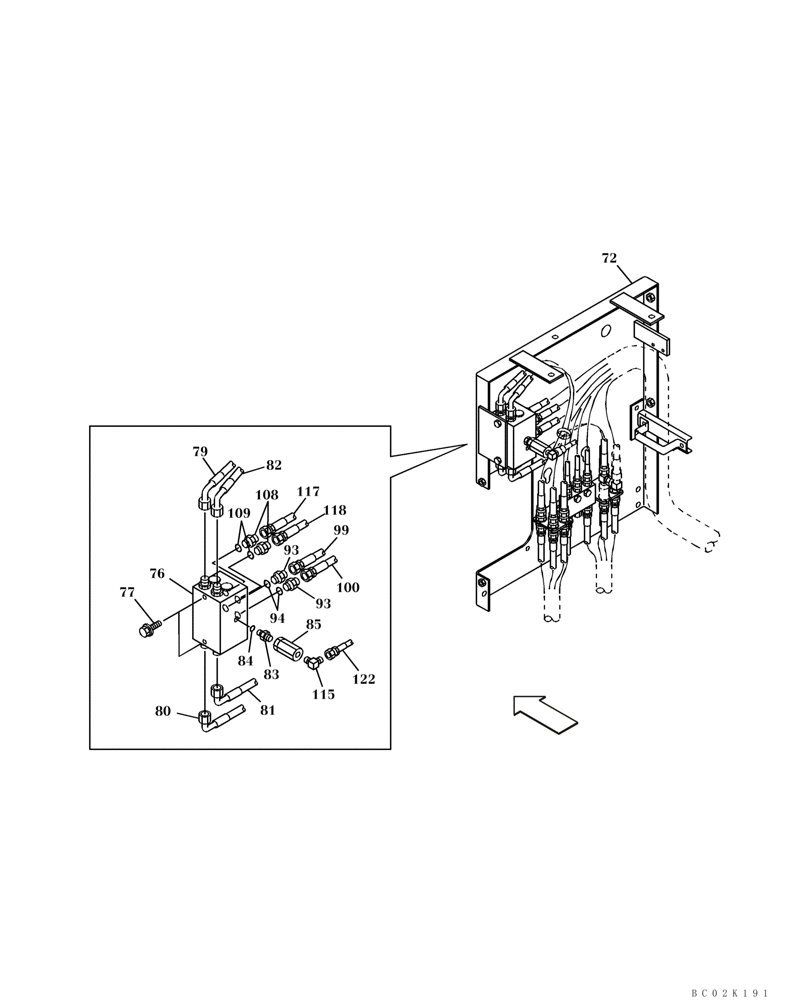

Схема запчастей Case CX460 - (08-27) - PILOT CONTROL LINES, PARTITION - MODELS WITHOUT LOAD HOLD (08) - HYDRAULICS
77
117
84
93
99
108
94
100
79
122
76
83
80
118
85
72
81
82
bc02k191
109
93
115
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

72

KTJ2107

BRACKET

1шт.

76

KTJ2288

VALVE, CUSHION

See Figure 08-26, 08-89

1шт.

76a

KTJ11150

VALVE PRESSURE RELIE

See Figure 08-26, 08-89A

1шт.

77

166052A1

BOLT

2шт.

79

KMJ1836

HOSE

See Figure 08-26

1шт.

80

162835A1

HOSE ASSY.

See Figure 08-26

1шт.

81

KTJ1639

HOSE

See Figure 08-26

1шт.

82

KRJ3569

HOSE

See Figure 08-26

1шт.

83

152899A1

HYD CONNECTOR

Incl. 84

1шт.

84

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

85

151552A1

FILTER

Inline

1шт.

93

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 94

2шт.

94

154475A1

O-RING

1шт.

99

157969A1

HOSE

See Figure 08-34

1шт.

100

157969A1

HOSE

See Figure 08-34

1шт.

108

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 109

2шт.

109

154475A1

O-RING

1шт.

115

153596A1

ADAPTER

1шт.

117

164230A1

HOSE ASSY.

See Figure 08-34

1шт.

118

152771A1

HOSE ASSY.

3000 mm (118-1/8 in); See Figure 08-34

1шт.

122

KHJ1766

HOSE

1шт.
