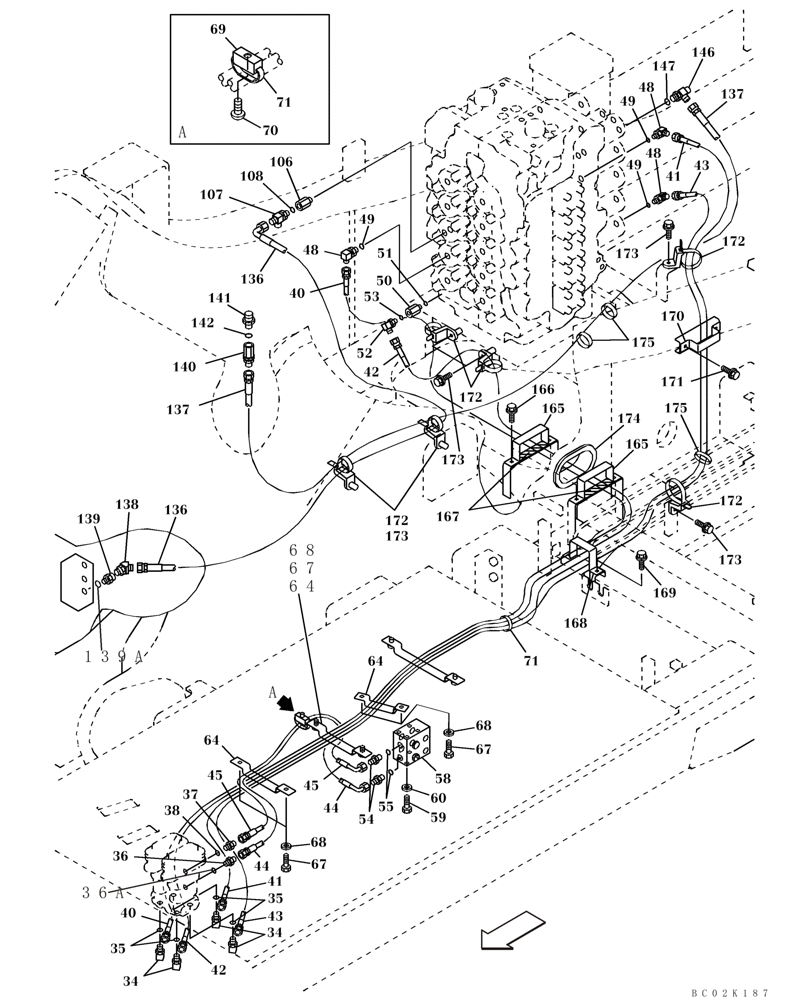

Запчасти Case CX460 (08-23) - PILOT CONTROL LINES, TRAVEL - MODELS WITH LOAD HOLD (08) - HYDRAULICS

34

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 35

4шт.

35

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

36

161841A1

HYD CONNECTOR

Incl. 36A

1шт.

36a

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

37

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 38

1шт.

38

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

40

158130A1

HOSE,6.3mm ID x 1350mm L

3350 mm (131-7/8 in)

1шт.

41

157997A1

HOSE,6.3 mm ID x 3700.00 mm

1шт.

42

151904A1

HOSE,6.3mm ID x 3100mm L

1шт.

43

161292A1

HOSE,3550.00 mm

1шт.

44

KAJ3524

HYDRAULIC HOSE

1шт.

45

159019A1

HOSE ASSY.

900 mm (35-7/16 in)

1шт.

48

156554A1

ELBOW

Incl. 49

3шт.

49

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

50

KHJ1212

STUD

Incl. 51

1шт.

51

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

52

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 53

1шт.

53

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

54

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 55

2шт.

55

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

58

KRJ5903

MANIFOLD

1шт.

59

828-8100

BOLT,Hex, M8 x 1.25 x 100mm, Cl 10.9

4шт.

60

153081A1

WASHER

4шт.

64

KHJ1394

CLAMP

3шт.

67

627-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 10.9, Full Thd

6шт.

68

153081A1

WASHER

6шт.

69

150860A1

COLLAR

1шт.

70

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

1шт.

71

150071A1

MOUNTING CLIP

2шт.

106

KHV0373

STUD

1шт.

107

164107A1

TEE,3/8" ORB x 3/8" - 19 NPT x 3/8" - 19 NPT

Incl. 108

1шт.

108

154475A1

O-RING

1шт.

136

KMJ1989

HOSE

1шт.

137

159079A1

HYDRAULIC HOSE

1шт.

138

KHJ1739

ELBOW

1шт.

139

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 139A

1шт.

139a

154475A1

O-RING

1шт.

140

KHJ1078

ADAPTER

1шт.

141

KRJ1231

ADAPTER

Incl. 142

1шт.

142

154475A1

O-RING

1шт.

146

164107A1

TEE,3/8" ORB x 3/8" - 19 NPT x 3/8" - 19 NPT

Incl. 147

1шт.

147

154475A1

O-RING

1шт.

165

159036A1

CLAMP

2шт.

166

166350A1

BOLT

4шт.

167

159028A1

RUBBER BLOCK

2шт.

168

161095A1

CLAMP

1шт.

169

166350A1

BOLT

2шт.

170

159034A1

CLAMP

1шт.

171

166350A1

BOLT

2шт.

172

KHR2581

CLAMP

6шт.

173

KHJ1215

BOLT,Spcl

6шт.

174

163732A1

GROMMET

1шт.

174

150071A1

MOUNTING CLIP

1шт.

180

KHJ1078

ADAPTER

Not Illustrated

1шт.

190

163422A1

TEE

Not Illustrated

1шт.
