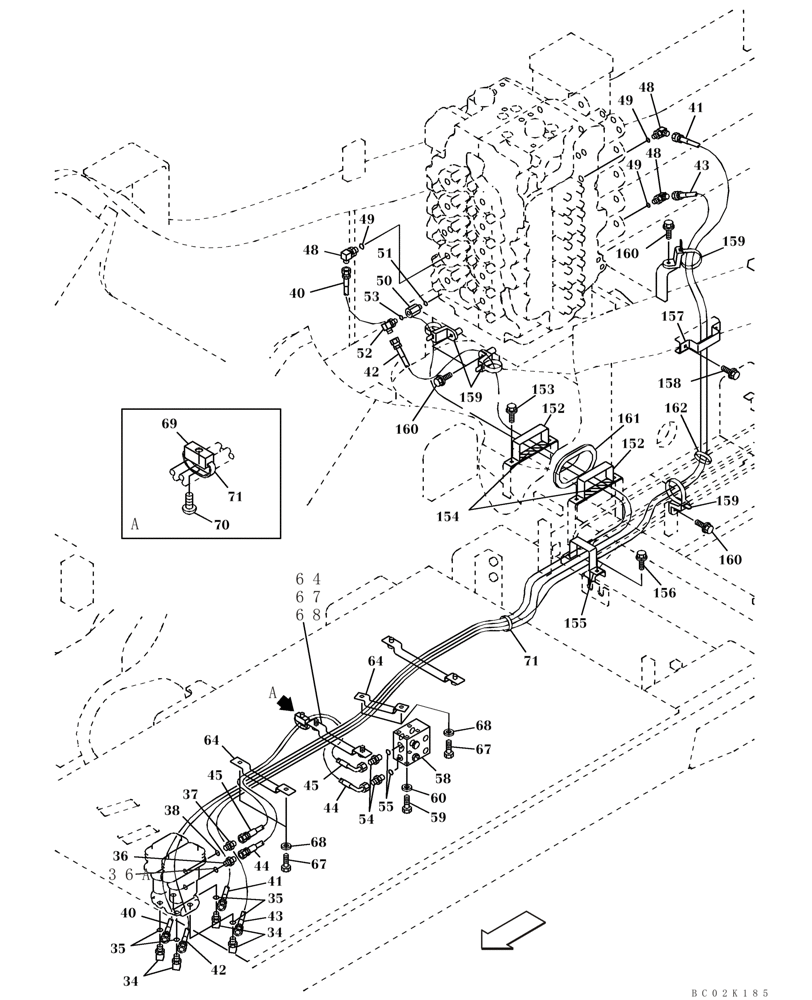

Запчасти Case CX460 (08-21) - PILOT CONTROL LINES, TRAVEL - MODELS WITHOUT LOAD HOLD (08) - HYDRAULICS

34

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 35

4шт.

35

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

36

161841A1

HYD CONNECTOR

Incl. 36A

1шт.

36a

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

37

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 38

1шт.

38

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

40

158130A1

HOSE,6.3mm ID x 1350mm L

3350 mm (131-7/8 in)

1шт.

41

157997A1

HOSE,6.3 mm ID x 3700.00 mm

1шт.

42

151904A1

HOSE,6.3mm ID x 3100mm L

1шт.

43

161292A1

HOSE,3550.00 mm

1шт.

44

KAJ3524

HYDRAULIC HOSE

1шт.

45

159019A1

HOSE ASSY.

1шт.

48

156554A1

ELBOW

Incl. 49

3шт.

49

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

50

KHJ1212

STUD

Incl. 51

1шт.

51

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

52

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 53

1шт.

53

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

54

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 55

2шт.

55

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

58

KRJ5903

MANIFOLD

1шт.

59

828-8100

BOLT,Hex, M8 x 1.25 x 100mm, Cl 10.9

4шт.

60

153081A1

WASHER

4шт.

64

KHJ1394

CLAMP

3шт.

67

627-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 10.9, Full Thd

6шт.

68

153081A1

WASHER

6шт.

69

150860A1

COLLAR

1шт.

70

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

1шт.

71

150071A1

MOUNTING CLIP

1шт.

152

159036A1

CLAMP

3шт.

153

166350A1

BOLT

6шт.

154

159028A1

RUBBER BLOCK

2шт.

155

161095A1

CLAMP

1шт.

156

166350A1

BOLT

2шт.

157

159034A1

CLAMP

1шт.

158

166350A1

BOLT

2шт.

159

KHR2581

CLAMP

4шт.

160

KHJ1215

BOLT,Spcl

4шт.

161

163732A1

GROMMET

1шт.

162

150071A1

MOUNTING CLIP

1шт.

170

KHJ1078

ADAPTER

Not Illustrated

1шт.

180

163422A1

TEE

Not Illustrated

1шт.
