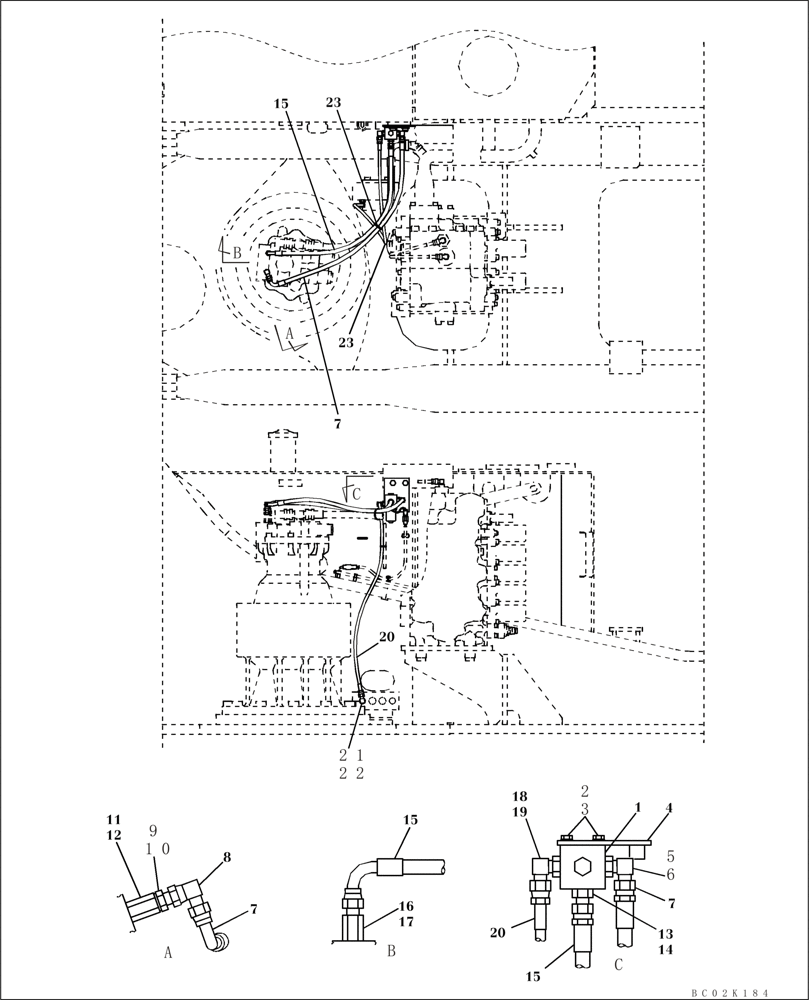

Запчасти Case CX460 (08-20) - HYDRAULICS - FREE SWING (08) - HYDRAULICS

1

159205A1

VALVE

Solenoid; See Figure 08-87

1шт.

2

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

2шт.

3

892-11006

LOCK WASHER,M6

2шт.

4

KTJ2296

BRACKET

1шт.

5

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 6

1шт.

6

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

7

KTJ2297

HYDRAULIC HOSE,6.35 mm ID x 900.00 mm

1шт.

8

163814A1

ELBOW

1шт.

9

162366A1

ADAPTER

Incl. 10

1шт.

10

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

11

162525A1

STUD

Incl. 12

1шт.

12

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

13

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 14

1шт.

14

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

15

KTJ2298

HYDRAULIC HOSE,6.35 mm ID x 820.00 mm

1шт.

16

162554A1

FITTING

Incl. 17

1шт.

17

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

18

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 19

1шт.

19

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

20

151877A1

HOSE,63.00 mm ID x 1200.00 mm

1шт.

21

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 22

1шт.

22

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

23

150498A1

MOUNTING CLIP

1шт.
