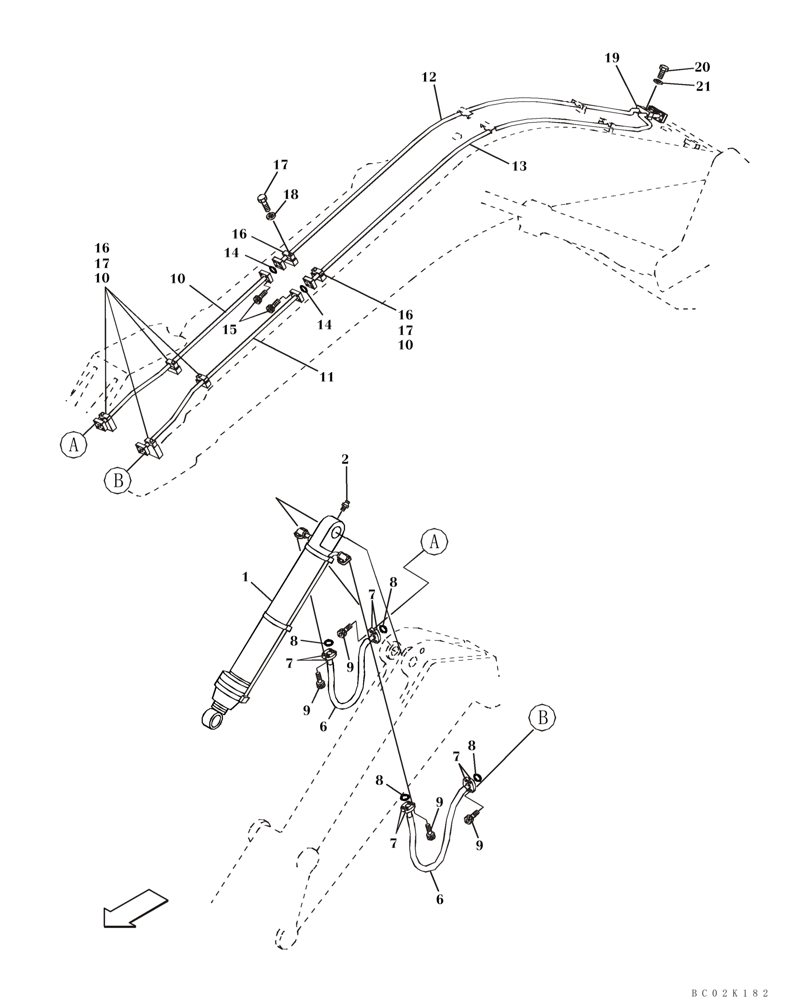

Запчасти Case CX460 (08-17) - HYDRAULICS - BUCKET, 2,53 METER (8 FT 4 IN) ARM (08) - HYDRAULICS

1

KTV1459

CYLINDER ASSY.

Bucket, See Figure 08-95; Replaces KTV1410

1шт.

2

M01X0813

NIPPLE, LUBE

NIPPLE Grease

2шт.

6

KTV1339

HYDRAULIC HOSE,25.40 mm ID x 1900.00 mm

2шт.

7

153459A1

FLANGE

8шт.

8

155211A1

O-RING

4шт.

9

862-10040

HEX SOC SCREW,M10 x 40mm, Cl 12.9

16шт.

10

KTV1190

HYD TUBE,26 mm ID x 34 mm OD

1шт.

11

KTV1191

TUBE ASSY.,26 mm ID x 34 mm OD

1шт.

12

KTV1192

HYD TUBE,26 mm ID x 34 mm OD

1шт.

13

KTV1193

HYD TUBE,26 mm ID x 34 mm OD

1шт.

14

154548A1

O-RING

2шт.

15

862-10045

HEX SOC SCREW,M10 x 45mm, Cl 12.9

8шт.

16

150777A1

COLLAR

6шт.

17

827-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

6шт.

18

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

6шт.

19

162595A1

CLAMP

1шт.

20

827-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

1шт.

21

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

1шт.
