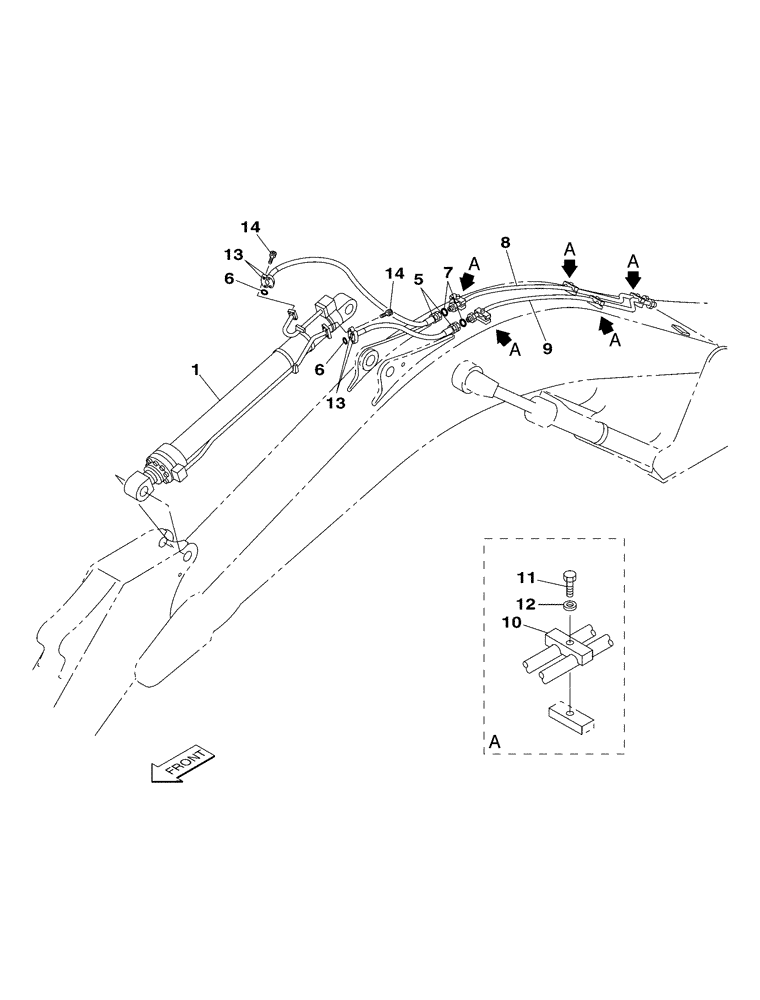

Запчасти Case CX350 (08-051-00[01]) - HYDRAULIC CIRCUIT - DIPPER CYLINDER - WITHOUT VALVE, PRESSURE RELIEF (08) - HYDRAULICS

1

KSV1395

HYDRAULIC CYLINDER

1шт.

See Page(s) 08-207-00-01, 09-117-00-01

1шт.

5

KSV1366

HYDRAULIC HOSE,25.40 mm ID x 1500.00 mm

2шт.

6

164450A1

O-RING

2шт.

7

KHJ1361

O-RING,0.07" Thk x 0.926" ID

2шт.

8

KSV1354

TUBE ASSY.,26 mm ID x 34 mm OD

1шт.

9

KSV1355

TUBE ASSY.,26 mm ID x 34 mm OD

1шт.

10

162595A1

CLAMP

5шт.

11

827-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

5шт.

12

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

5шт.

13

150124A1

FLANGE

4шт.

14

862-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

M14 x 50; 12.9

8шт.
