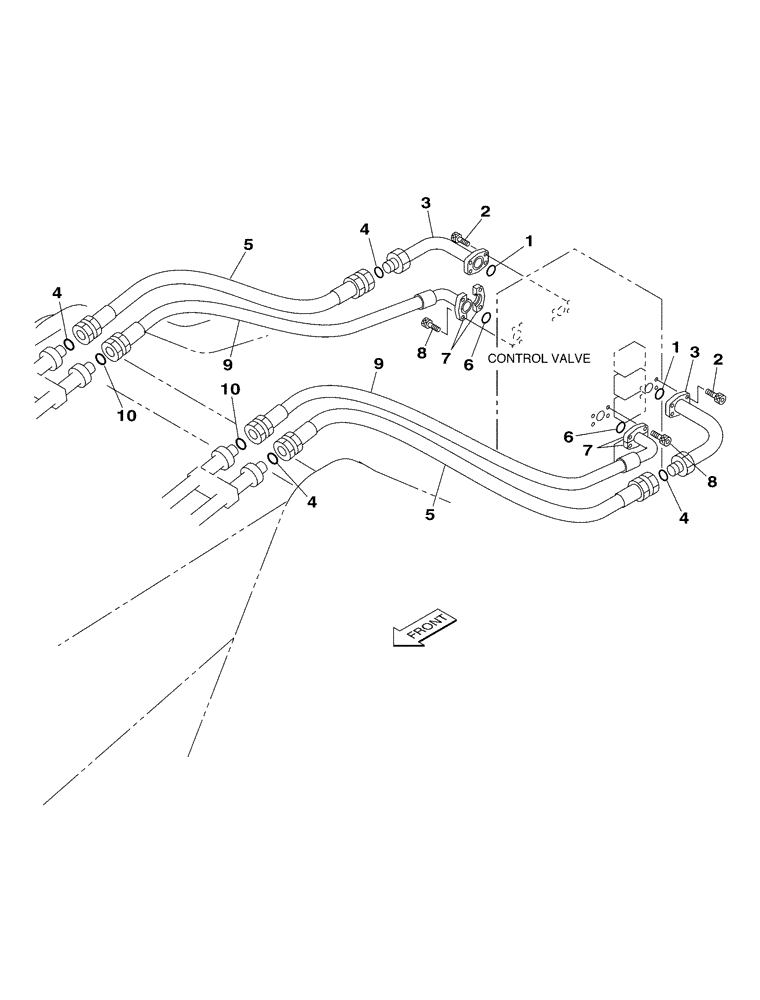

Запчасти Case CX350 (08-049-00[01]) - HYDRAULIC CIRCUIT - DIPPER AND BUCKET CYLINDER (08) - HYDRAULICS

1

154548A1

O-RING

2шт.

2

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

8шт.

3

KSJ2684

HYD TUBE

2шт.

4

KHJ1361

O-RING,0.07" Thk x 0.926" ID

4шт.

5

KSJ2686

HYDRAULIC HOSE,25.40 mm ID x 1500.00 mm

2шт.

6

155211A1

O-RING

2шт.

7

153549A1

HOSE

4шт.

8

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

8шт.

9

KSJ2685

HOSE ASSY.,25.40 mm ID x 1550.00 mm

2шт.

10

KHJ1361

O-RING,0.07" Thk x 0.926" ID

2шт.
