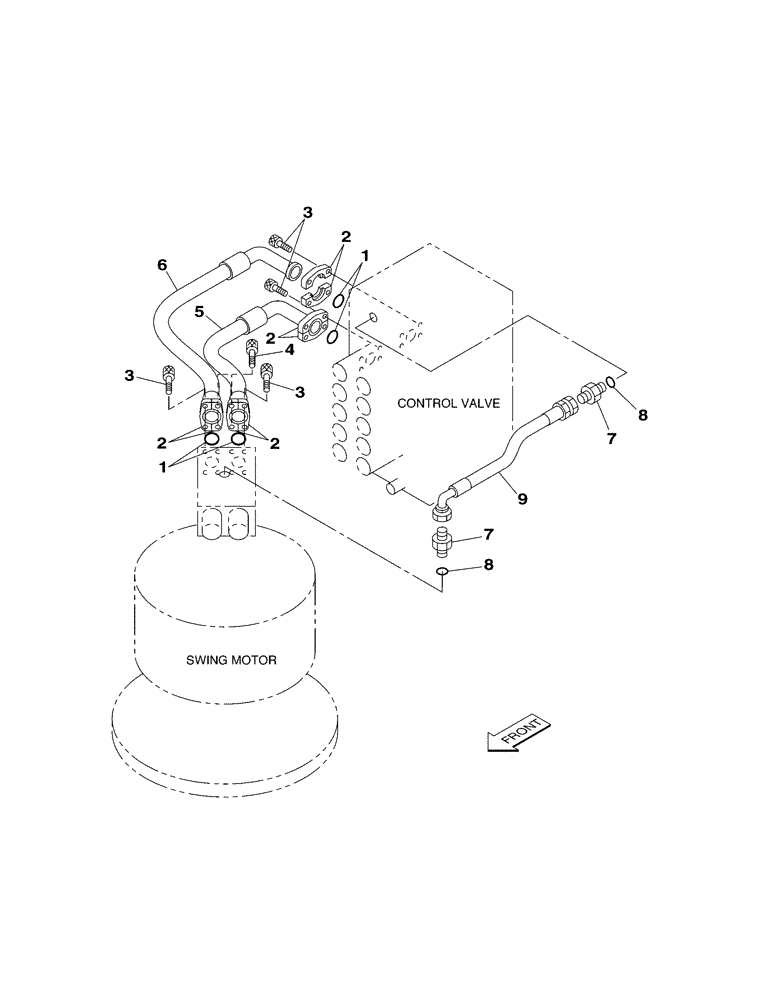

Запчасти Case CX350 (08-041-00[01]) - HYDRAULIC CIRCUIT - SWING MOTOR (08) - HYDRAULICS

1

155211A1

O-RING

4шт.

2

153459A1

FLANGE

8шт.

3

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

14шт.

4

862-10025

HEX SOC SCREW,M10 x 25mm, Cl 12.9

2шт.

5

KSJ2717

HYDRAULIC HOSE,25.4mm ID x 580mm L

1шт.

6

KSJ2718

HYDRAULIC HOSE,25.4mm ID x 770mm L

1шт.

7

151655A1

HYD CONNECTOR,1" NPT O-Ring x 1" NPT

2шт.

Consists Of Ref. Number 8

1шт.

8

154523A1

O-RING

1шт.

9

KSJ2723

HYDRAULIC HOSE,25.40 mm ID x 530.00 mm

1шт.
