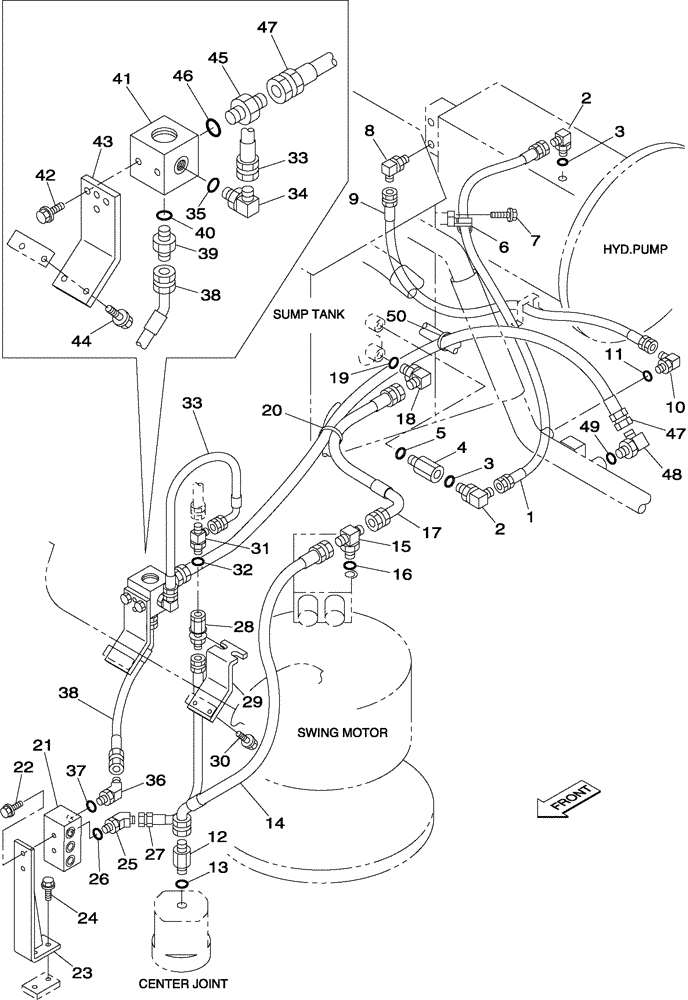

Запчасти Case CX350 (08-035-00[01]) - HYDRAULIC CIRCUIT - LEAK-OFF RETURN - WITH VALVE, PRESSURE RELIEF (08) - HYDRAULICS

1

KSJ2972

HYDRAULIC HOSE,25.40 mm ID x 900.00 mm

1шт.

2

KHJ0603

ELBOW

2шт.

Consists Of Ref. Number 3

1шт.

3

154503A1

O-RING

1шт.

4

152012A1

ELEC CONNECTOR

1шт.

Consists Of Ref. Number 5

1шт.

5

154503A1

O-RING

1шт.

6

KHR2581

CLAMP

1шт.

7

KHJ1215

BOLT,Spcl

1шт.

8

157937A1

ELBOW

1шт.

9

KRJ6431

HYDRAULIC HOSE,12.70 mm ID x 1700.00 mm

1шт.

10

150919A1

ELBOW,90 Degree, 1/2" O-Ring x 1/2"

1шт.

Consists Of Ref. Number 11

1шт.

11

154487A1

O-RING

1шт.

12

KAJ2358

FITTING

1шт.

Consists Of Ref. Number 13

1шт.

13

154487A1

O-RING

1шт.

14

KSJ2790

HYDRAULIC HOSE,19.05 mm ID x 880.00 mm

1шт.

15

163114A1

TEE

1шт.

Consists Of Ref. Number 16

1шт.

16

154487A1

O-RING

1шт.

17

KAJ3619

HYDRAULIC HOSE,19mm ID x 950mm L

1шт.

18

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

1шт.

Consists Of Ref. Number 19

1шт.

19

154503A1

O-RING

1шт.

20

150071A1

MOUNTING CLIP

380 mm

1шт.

21

KSJ2817

MANIFOLD

1шт.

22

166351A1

BOLT,Sems, M10 x 20mm

2шт.

23

KSJ2818

BRACKET

1шт.

24

166351A1

BOLT,Sems, M10 x 20mm

2шт.

25

157584A1

ELBOW

1шт.

Consists Of Ref. Number 26

1шт.

26

154475A1

O-RING

1шт.

27

153319A1

HOSE ASSY.

1шт.

28

KHJ1078

ADAPTER

1шт.

29

KSJ2819

BRACKET

1шт.

30

166351A1

BOLT,Sems, M10 x 20mm

2шт.

31

164107A1

TEE,3/8" ORB x 3/8" - 19 NPT x 3/8" - 19 NPT

1шт.

Consists Of Ref. Number 32

1шт.

32

154475A1

O-RING

1шт.

33

KTJ1639

HOSE

1шт.

34

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

1шт.

Consists Of Ref. Number 35

1шт.

35

154475A1

O-RING

1шт.

36

157585A1

ELBOW

1шт.

Consists Of Ref. Number 37

1шт.

37

154487A1

O-RING

1шт.

38

KSJ2820

HYDRAULIC HOSE,12.70 mm ID x 700.00 mm

1шт.

39

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

1шт.

Consists Of Ref. Number 40

1шт.

40

154487A1

O-RING

1шт.

41

164112A1

MANIFOLD

1шт.

42

167182A1

BOLT,Sems, M8 x 25mm

2шт.

43

162012A1

BRACKET

1шт.

44

166052A1

BOLT

2шт.

45

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

1шт.

Consists Of Ref. Number 46

1шт.

46

154503A1

O-RING

1шт.

47

163520A1

HYDRAULIC HOSE,19.00 mm ID x 1650.00 mm

1шт.

48

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

1шт.

Consists Of Ref. Number 49

1шт.

49

154503A1

O-RING

1шт.

50

150071A1

MOUNTING CLIP

380 mm

1шт.
