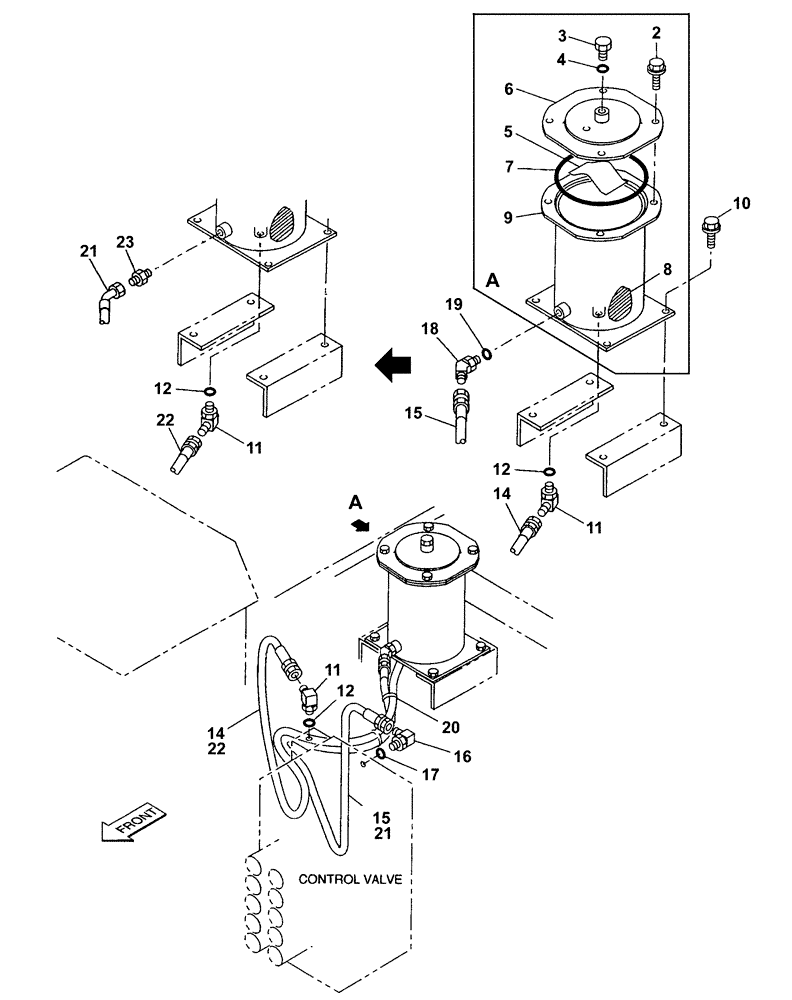

Запчасти Case CX350 (08-025-00[01]) - HYDRAULIC CIRCUIT - OIL FILTER (08) - HYDRAULICS

2

166351A1

BOLT,Sems, M10 x 20mm

4шт.

3

159285A1

PLUG

1шт.

Consists Of Ref. Number 4

1шт.

4

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

5

KHJ1588

SPRING

1шт.

6

KHJ1564

COVER

1шт.

7

KHJ1404

O-RING

1шт.

8

159282A1

HYDRAULIC OIL FILTER

1шт.

9

KHJ2592

HOUSING

1шт.

10

166052A1

BOLT

4шт.

11

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

2шт.

Consists Of Ref. Number 12

1шт.

12

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

14

159007A1

HOSE

2300 mm (90-5/8 in)

1шт.

15

152264A1

HOSE,6.3mm ID x 2200mm L

1шт.

16

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

1шт.

Consists Of Ref. Number 17

1шт.

17

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

18

150933A1

ELBOW

1шт.

Consists Of Ref. Number 19

1шт.

19

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

20

150071A1

MOUNTING CLIP

380 mm

1шт.

21

KAJ3099

HYDRAULIC HOSE

2200 mm (86-5/8 in)

1шт.

22

152264A1

HOSE,6.3mm ID x 2200mm L

1шт.

23

KHJ2012

ORIFICE

1шт.
