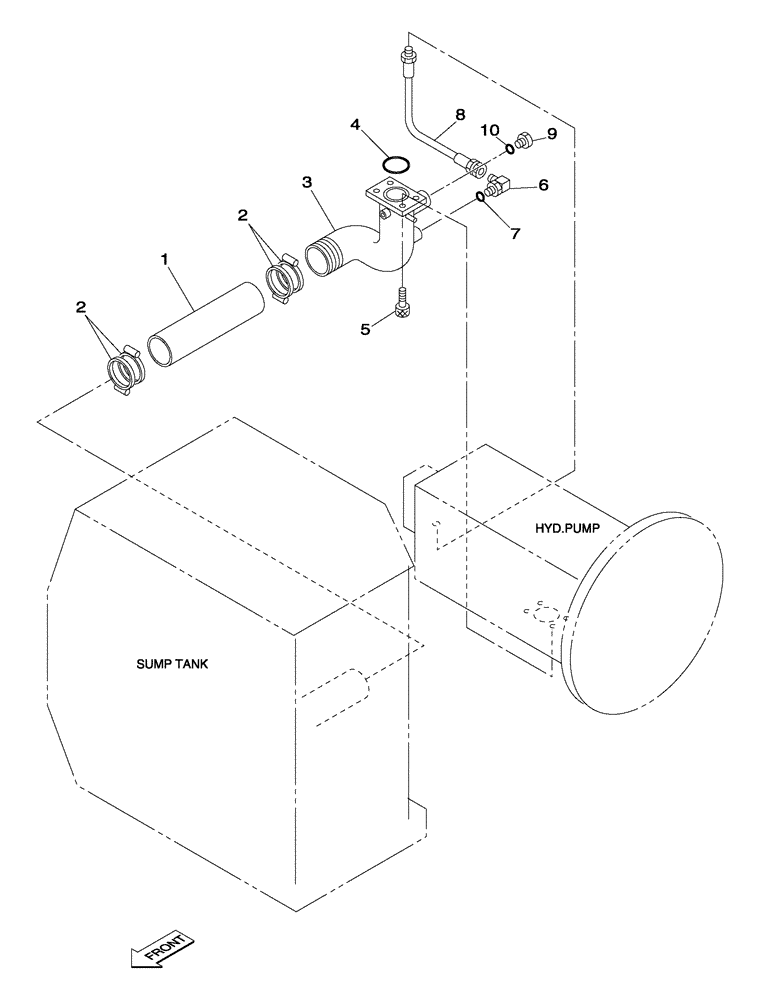

Запчасти Case CX350 (08-013-00[01]) - SUCTION HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

KHJ2426

HOSE

1шт.

2

150905A1

CLAMP

4шт.

3

KSJ2891

TUBE ASSY.,67.9 mm ID x 76.3 mm OD

1шт.

4

154681A1

O-RING

1шт.

5

862-16030

HEX SOC SCREW,M16 x 30mm, Cl 12.9

4шт.

6

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

1шт.

Consists Of Ref. Number 7

1шт.

7

154503A1

O-RING

1шт.

8

KSJ2868

HYDRAULIC HOSE,19.05 mm ID x 550.00 mm

1шт.

9

162659A1

PLUG

1шт.

Consists Of Ref. Number 10

1шт.

10

154523A1

O-RING

1шт.
