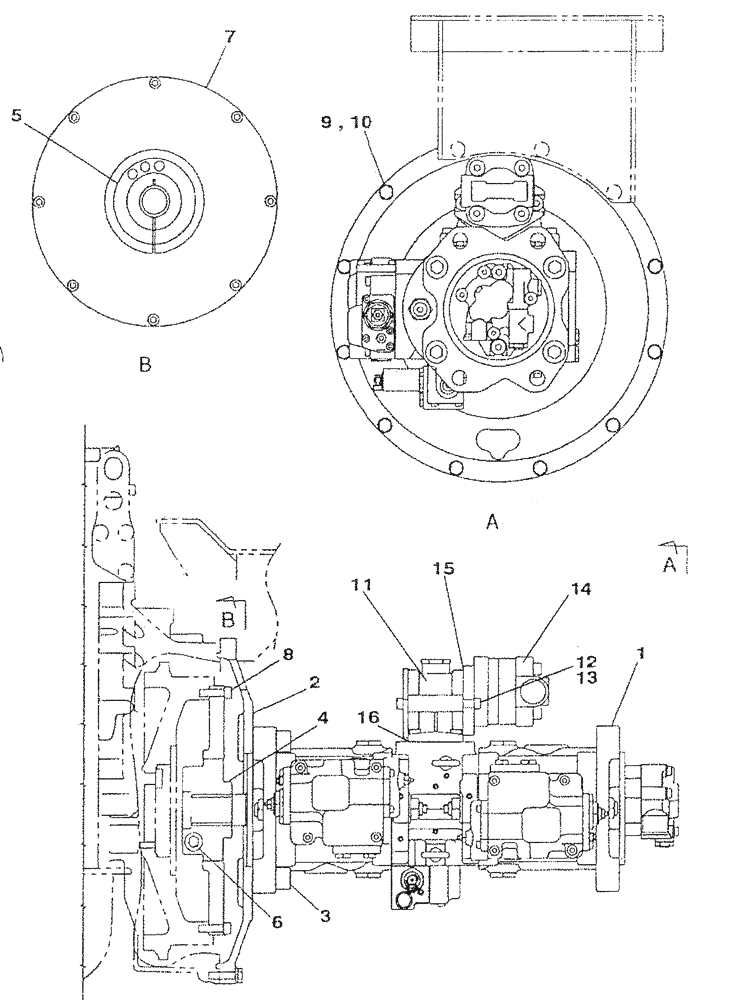

Запчасти Case CX350 (08-009-05[01]) - HYDRAULIC PUMP - WITH AUXILIARY HYDRAULIC - COUPLING (08) - HYDRAULICS

1

KSJ2847

HYDRAULIC PUMP

1шт.

Consists Of Ref. Numbers 11 To 16

1шт.

See Page(s) 08-163-10-01 To 08-163-14-01

1шт.

2

KSJ2852

FLANGE

1шт.

3

862-20055

HEX SOC SCREW,M20 x 55mm, Cl 12.9

M20 x 55; 12.9

4шт.

4

KSJ2874

COUPLING FLANGE

1шт.

Consists Of Ref. Numbers 5, 6, 7

1шт.

5

KSJ2875

HUB

1шт.

6

108R016Y045R

BOLT

1шт.

7

KSJ2666

COVER

1шт.

8

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

8шт.

9

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

9шт.

10

150409A1

WASHER

10,5 x 21 x 3,2 mm

9шт.

11

KMJ2983

REPAIR KIT

1шт.

See Page(s) 08-163-14-01

1шт.

12

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

2шт.

14

KSJ2882

HYDRAULIC PUMP

1шт.

15

154697A1

O-RING

1шт.

16

154713A1

O-RING

1шт.

13

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.
