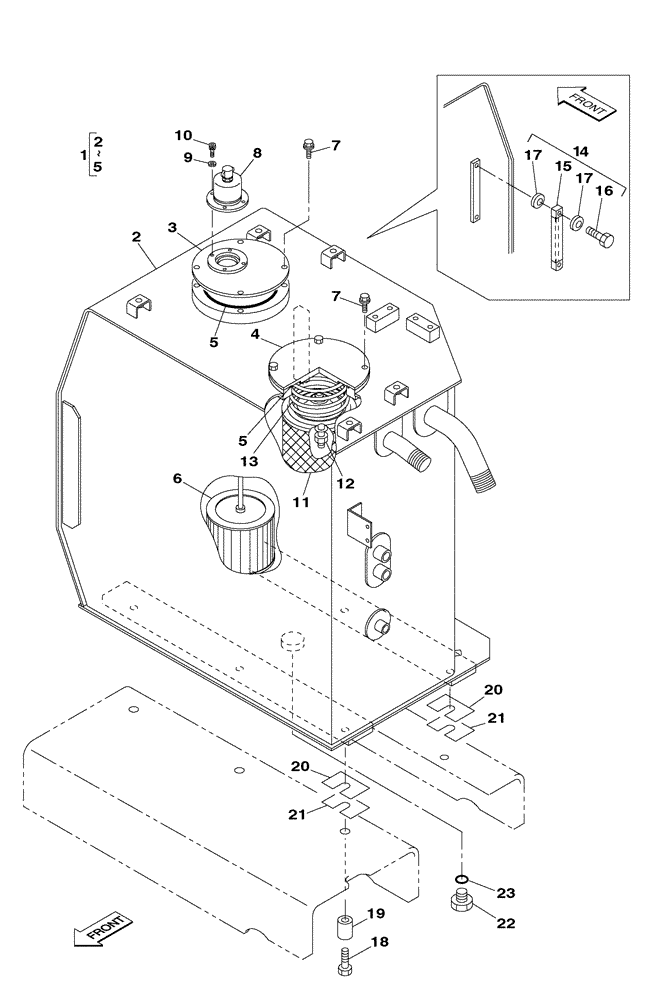

Запчасти Case CX350 (08-005-00[01]) - HYDRAULIC RESERVOIR - KAWASAKI (08) - HYDRAULICS

1

KSJ3081

TANK, HYDRAULIC OIL

1шт.

Consists Of Ref. Numbers 2 To 5

1шт.

2

NSS

NOT SOLD SEPARAT

Tank Sump

1шт.

3

KTJ2044

COVER

1шт.

4

KSJ3080

COVER

1шт.

5

154837A1

O-RING

2шт.

6

KSJ2675

HYDRAULIC OIL FILTER

1шт.

7

166052A1

BOLT

8шт.

8

KHJ1781

BREATHER

1шт.

9

892-11006

LOCK WASHER,M6

4шт.

10

862-6016

HEX SOC SCREW,M6 x 16mm, Cl 12.9

M6 x 16; 12.9

4шт.

11

KSJ2756

HYDRAULIC OIL FILTER

1шт.

12

159273A1

VALVE

1шт.

13

KSJ2758

COMPRESSION SPRING

1шт.

14

163560A1

SIGHTGLASS

1шт.

Consists Of Ref. Numbers 15, 16, 17

1шт.

15

163561A1

GAUGE

1шт.

16

159492A1

BOLT

2шт.

17

159493A1

SEALING WASHER

SEAL WASHER

4шт.

18

827-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

6шт.

19

162301A1

SPACER

6шт.

20

150166A1

SHIM

0,80 mm (0,032 in)

1шт.

21

150479A1

SHIM

2,00 mm (0,079 in)

1шт.

22

152924A1

PLUG

1шт.

Consists Of Ref. Number 23

1шт.

23

154503A1

O-RING

1шт.
