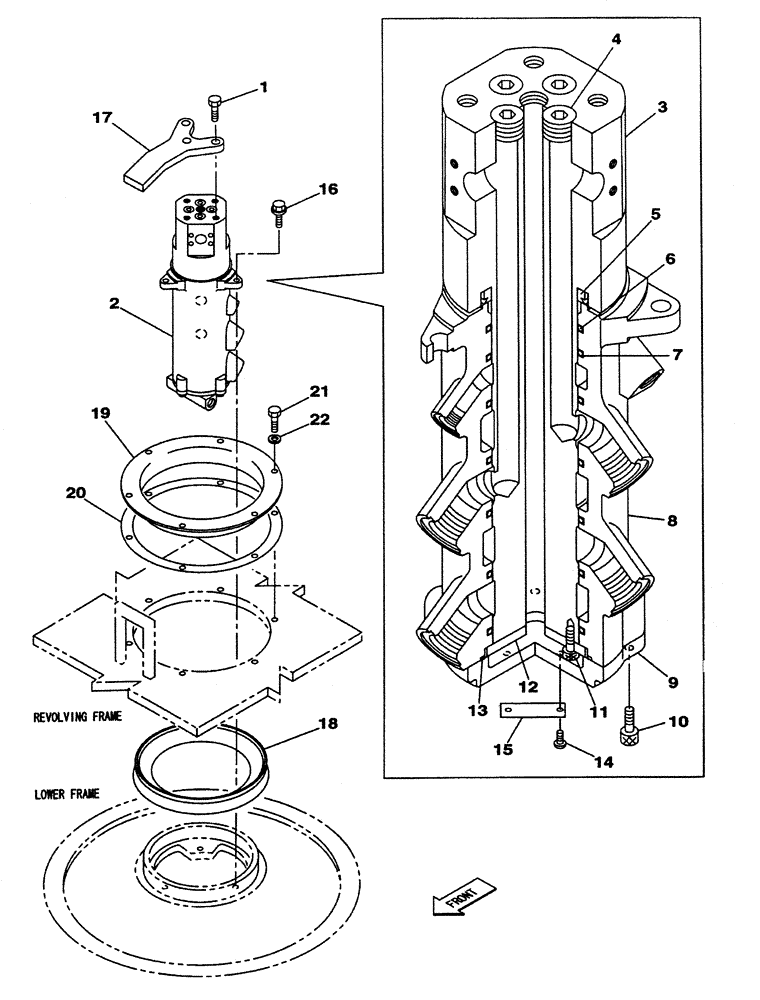

Запчасти Case CX350 (07-007-01[01]) - SWING JOINT (07) - BRAKES

1

166373A1

BOLT,Sems, M16 x 40mm

3шт.

2

KSA1305

HYDRAULIC SWIVEL

1шт.

Consists Of Ref. Numbers 3 To 13

1шт.

2

KSA1305R

REMAN-HYDRAULIC SWIV

CX350 CASE CRAWLER EXCAVATOR (EUROPE)

1шт.

2

KSA1305C

CORE-HYDRAULIC SWIV

Return Number

1шт.

3

KSA1303

SHAFT

1шт.

Consists Of Ref. Numbers 4

1шт.

4

150829A1

PLUG

4шт.

5

KTA1092

SHAFT SEAL

1шт.

6

KHA10120

O-RING

1шт.

7

KTA1093

SEALING RING

SEALRING

6шт.

8

KSA1304

ROTOR

1шт.

9

KTA1095

COVER

1шт.

10

861-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

11

861-8020

HEX SOC SCREW,M8 x 20mm, Cl 12.9

4шт.

12

KTA1096

PLATE

1шт.

13

154761A1

O-RING,119.4mm ID x 3.1mm Width

1шт.

14

301-1413

DRIVE SCREW,Drive, #2 x 3/16"

2шт.

15

152593A1

TYPE PLATE

1шт.

16

166352A1

BOLT

3шт.

17

KSA1140

SUPPORT

1шт.

18

151009A1

SEALING RING

Hex, M16 x 35, 10.9

1шт.

19

152635A1

RETAINER

1шт.

20

152596A1

RUBBER SEAL

1шт.

21

627-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 10.9, Full Thd

6шт.

22

161498A1

SEALING WASHER

6шт.
