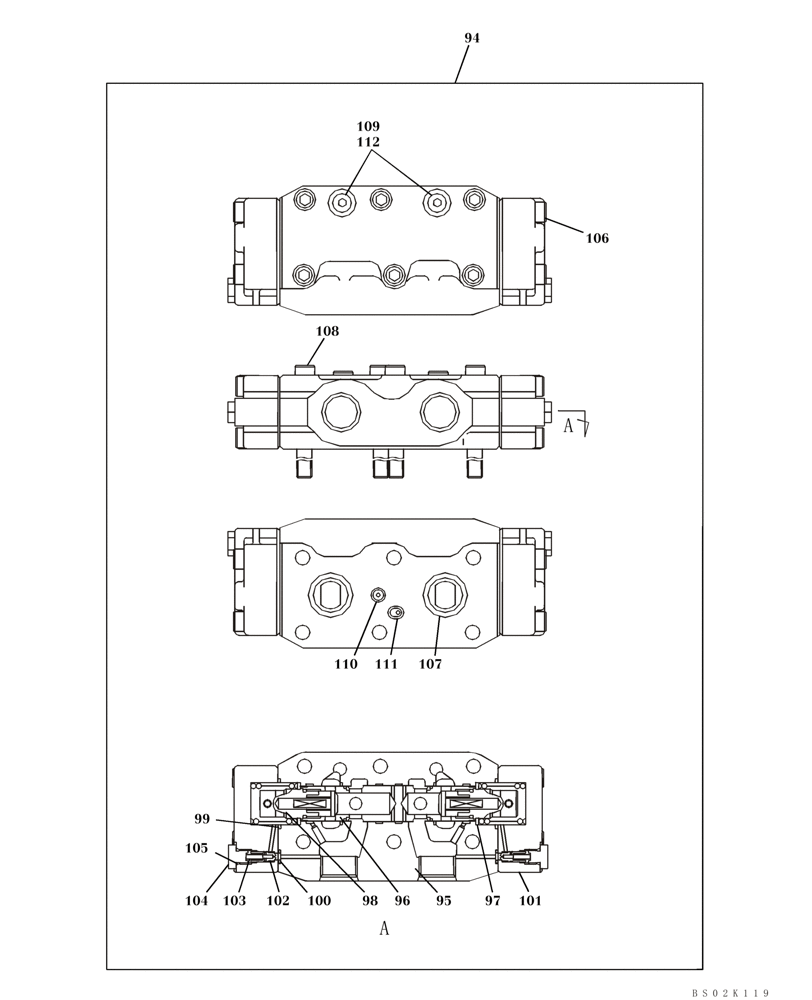

Запчасти Case CX350 (07-005-07[01]) - TRAVEL MOTOR - VALVE, BRAKE (07) - BRAKES

94

LJ00964

VALVE

1шт.

Consists Of Ref. Numbers 95 To 112

1шт.

95

NSS

NOT SOLD SEPARAT

Body

1шт.

96

LJ00965

SPOOL

1шт.

97

LR00868

SPRING SEAT

2шт.

98

LG00434

COMPRESSION SPRING

2шт.

99

154569A1

O-RING

2шт.

100

154459A1

O-RING

2шт.

101

LW00384

CONTROL BLOCK

2шт.

102

LK00389

RESTRICTOR

2шт.

103

LG00435

COMPRESSION SPRING

2шт.

104

LK00390

PLUG

2шт.

105

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

106

863-12045

HEX SOC SCREW,M12 x 45mm, Cl 12.9

M12 x 45; 12.9

8шт.

107

154549A1

O-RING

2шт.

108

863-12110

HEX SOC SCREW,M12 x 110mm, Cl 12.9

M12 x 110; 12.9

6шт.

109

LK00391

PLUG

2шт.

110

154459A1

O-RING

1шт.

111

154463A1

O-RING

1шт.

112

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

LZ00628

SEAL KIT

1шт.

Consists Of Ref. Numbers 28, 44, 45, 64 To 68, 79 To 82, 91, 92, 99, 100, 105, 107, 110, 111, 112, 114

1шт.
