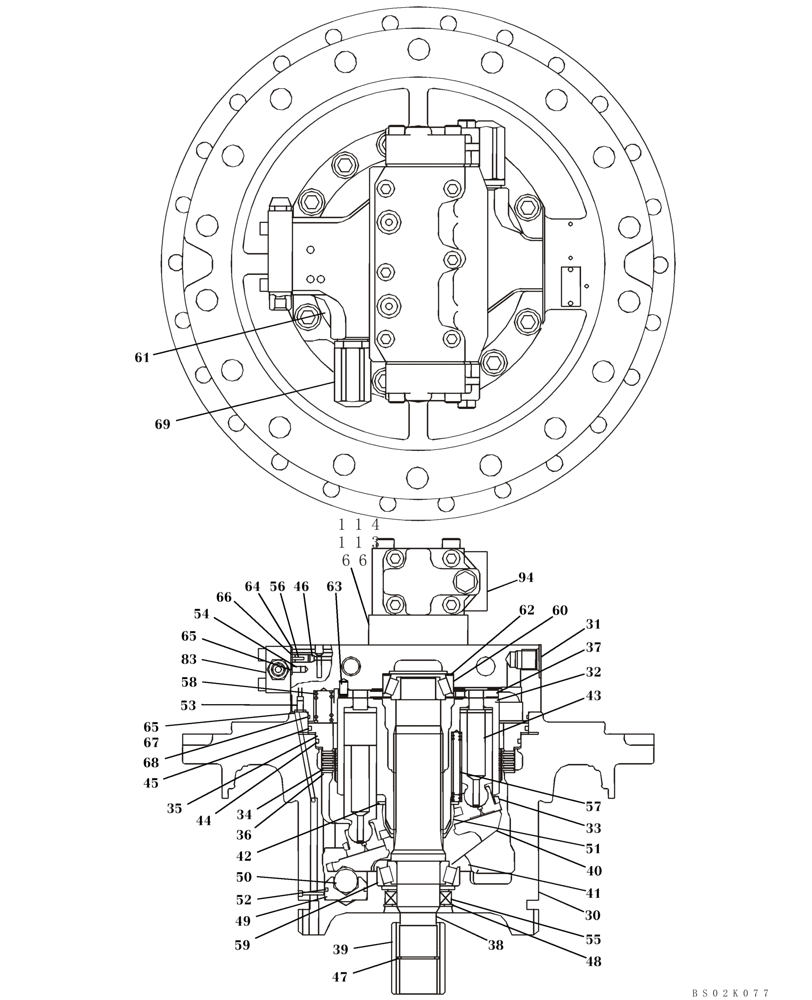

Запчасти Case CX350 (07-005-05[01]) - TRAVEL MOTOR (07) - BRAKES

30

LW00386

HOUSING

1шт.

31

LW00387

COVER

1шт.

32

LS00207

CYLINDER BLOCK

1шт.

33

LH00320

RETAINER

1шт.

34

LR00858

PLATE

4шт.

35

LJ00954

PISTON

1шт.

36

LR00859

ADJUSTING PLATE

5шт.

37

LR00877

PLATE

1шт.

38

LB00792

DRIVE SHAFT

1шт.

39

LB00793

COUPLING FLANGE

1шт.

LR01061

PLATE

1шт.

Consists Of Ref. Numbers 40, 41

1шт.

40

NSS

NOT SOLD SEPARAT

1шт.

41

NSS

NOT SOLD SEPARAT

2шт.

42

LR00879

SPRING SEAT

1шт.

43

LJ00968

JACK PISTON

9шт.

44

LE012900

SEALING RING

SEALRING

1шт.

45

LE012910

SEALING RING

SEALRING

1шт.

46

LJ00956

VALVE, CHECK

3шт.

47

800-2140

SNAP RING,M40, Int

1шт.

48

800-2168

SNAP RING,M68, Int

1шт.

49

LH00321

SHIM

1шт.

50

NSS

NOT SOLD SEPARAT

Piston

1шт.

51

LX00044

BALL

1шт.

52

LB00795

BALL JOINT

1шт.

53

NSS

NOT SOLD SEPARAT

1шт.

54

TK00140

RESTRICTOR

1шт.

55

LK005000

RESTRICTOR

1шт.

56

LE00997

OIL SEAL

1шт.

57

LG00429

COMPRESSION SPRING

3шт.

58

LG00430

COMPRESSION SPRING

9шт.

59

LG00431

COMPRESSION SPRING

14шт.

60

LB00796

TAPERED BEARING,45mm ID x 85mm OD x 24.75mm W

1шт.

61

LB00797

TAPERED BEARING,35mm ID x 72mm OD x 24.25mm W

1шт.

62

863-18050

HEX SOC SCREW,M18 x 50mm, Cl 12.9

M18 x 50; 12.9

10шт.

63

837-8012

DOWEL,M8 x 12

1шт.

64

154447A1

O-RING

3шт.

65

154455A1

O-RING

2шт.

66

154459A1

O-RING

5шт.

67

LE00998

O-RING

1шт.

68

LE00999

O-RING

1шт.

69

LJ00958

VALVE, PRESSURE RELI

EF

2шт.

See Page(s) 07-005-06-01

1шт.

83

LJ00962

VALVE

1шт.

See Page(s) 07-005-06-01

1шт.

94

LJ00964

VALVE

1шт.

See Page(s) 07-005-07-01

1шт.

113

NSS

NOT SOLD SEPARAT

1шт.

114

154549A1

O-RING

2шт.

LZ00628

SEAL KIT

1шт.

Consists Of Ref. Numbers 28, 44, 45, 64 To 68, 79 To 82, 91, 92, 99, 100, 105, 107, 110, 111, 112, 114

1шт.

See Page(s) 06-003-05-01, 07-005-06-01, 07-005-07-01

1шт.

LJ01075

PISTON

1шт.

Consists Of Ref. Numbers 49, 52

1шт.
