(07-003-00[01]) - HYDRAULIC CIRCUIT - UNDERCARRIAGE

Запчасти Case CX350 (07-003-00[01]) - HYDRAULIC CIRCUIT - UNDERCARRIAGE (07) - BRAKES

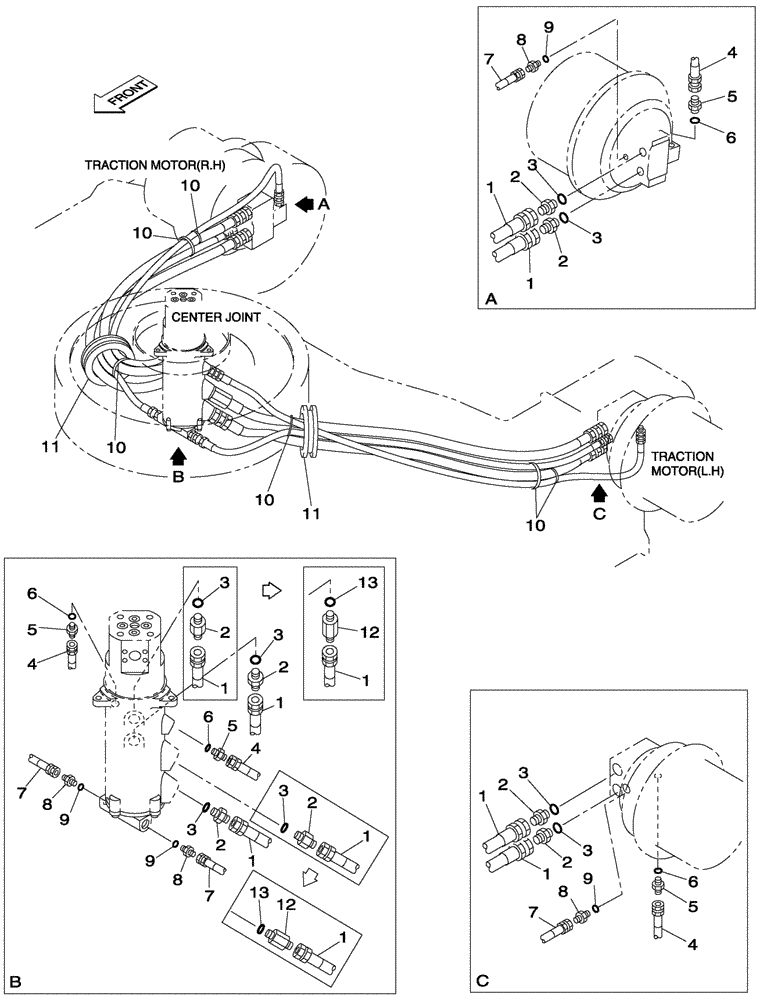

Схема запчастей Case CX350 - (07-003-00[01]) - HYDRAULIC CIRCUIT - UNDERCARRIAGE (07) - BRAKES
9
2
11
5
10
3
13
13
11
2
2
2
12
7
3
8
2
9
1
1
1
5
10
7
1
3
3
4
9
4
1
7
8
8
1
1
2
12
2
6
4
6
9
4
5
7
3
10
1
5
3
3
10
3
2
8
6
10
1
6
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KTA1166

HYDRAULIC HOSE,25.40 mm ID x 2400.00 mm

4шт.

2

151655A1

HYD CONNECTOR,1" NPT O-Ring x 1" NPT

6шт.

Consists Of Ref. Number 3

1шт.

3

154523A1

O-RING

1шт.

4

157851A1

HOSE

2850 mm (112-1/4 in)

2шт.

5

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

4шт.

Consists Of Ref. Number 6

1шт.

6

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

7

KRJ6044

HYDRAULIC HOSE,12.70 mm ID x 2500.00 mm

2шт.

8

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

4шт.

Consists Of Ref. Number 9

1шт.

9

154487A1

O-RING

1шт.

10

150071A1

MOUNTING CLIP

380 mm

1шт.

11

158813A1

GROMMET

2шт.

12

KHJ1156

STUD

2шт.

Consists Of Ref. Number 13

1шт.

13

154523A1

O-RING

1шт.
