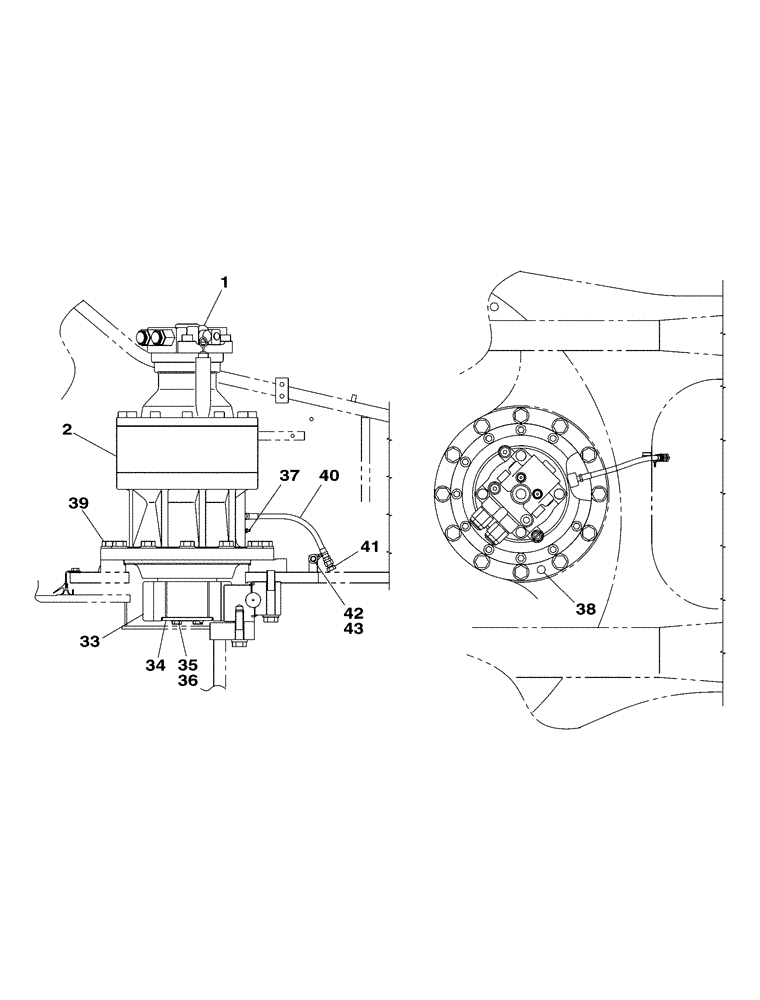

Запчасти Case CX350 (06-005-00[02]) - SWING MOTOR-DRIVE REDUCTION GEAR (06) - POWER TRAIN

1

KSC0247

MOTOR, HYDRAULIC

1шт.

See Page(s) 08-163-20-01

1шт.

1

KSC10170R

REMAN-HYD MOTOR

CX350 CASE CRAWLER EXCAVATOR (EUROPE), Reman for New PN KSC0247

1шт.

1

KSC10170C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

1

KSC10170

HYDRAULIC MOTOR

1шт.

See Page(s) 08-163-20-01

1шт.

1

KSC10170R

REMAN-HYD MOTOR

CX350 CASE CRAWLER EXCAVATOR (EUROPE)

1шт.

1

KSC10170C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

2

KSC0235

REDUCER

1шт.

See Page(s) 06-007-00-01

1шт.

2

KSC10250R

REMAN-REDUCTION UNIT

CX350 CASE CRAWLER EXCAVATOR (EUROPE), Reman for New PN KSC0235

1шт.

2

KSC10250C

CORE-REDUCTION UNIT

Return Number

1шт.

33

KSC0201

GEAR

1шт.

34

150285A1

PLATE, LOCKING

1шт.

35

167069A1

WASHER

1шт.

36

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

2шт.

37

153630A1

LUBE NIPPLE

1шт.

38

150317A1

HEADED PIN,24mm OD x 90mm L

1шт.

39

166477A1

BOLT,Sems, M24 x 90mm

12шт.

40

KTJ0315

HYDRAULIC HOSE,9.52 mm ID x 350.00 mm

1шт.

41

KHP0501

PLUG

1шт.

42

KHR2584

CLAMP

1шт.

43

KHJ1215

BOLT,Spcl

1шт.
