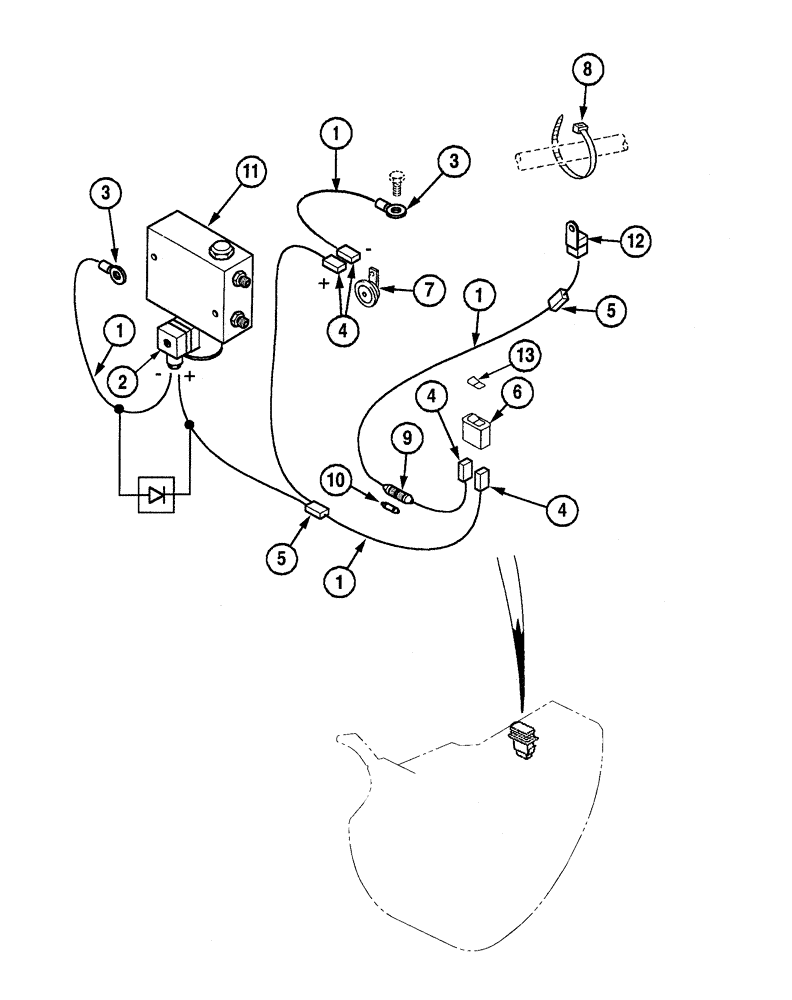

Запчасти Case CX350 (04-047-00[01]) - ELECTRICAL CIRCUIT - QUICK COUPLER (05) - STEERING

1

418691A1

HARNESS

1шт.

Consists Of Ref. Numbers 2 To 5, 9, 10, 12

1шт.

2

378263A1

BASE

1шт.

3

378251A1

CONNECTOR, ELEC

CONNECTOR

2шт.

4

378252A1

CONNECTOR, ELEC

CONNECTOR

4шт.

5

378254A1

CONNECTOR, ELEC

CONNECTOR

2шт.

6

419504A1

TOGGLE SWITCH

1шт.

84518713

WIRE HARNESS

To be used when you replace the switch already installed

1шт.

7

378255A1

BUZZER

24V

1шт.

8

N51946

CLAMP

275 mm

1шт.

9

378258A1

SUPPORT

1шт.

10

378256A1

FUSE

1шт.

11

F5343342

SOLENOID VALVE

1шт.

See Page(s) 04-049-00, 08-145-05

1шт.

12

378253A1

CONNECTOR, ELEC

CONNECTOR

1шт.

13

394409A1

SYMBOLS

SYMBOL

1шт.
