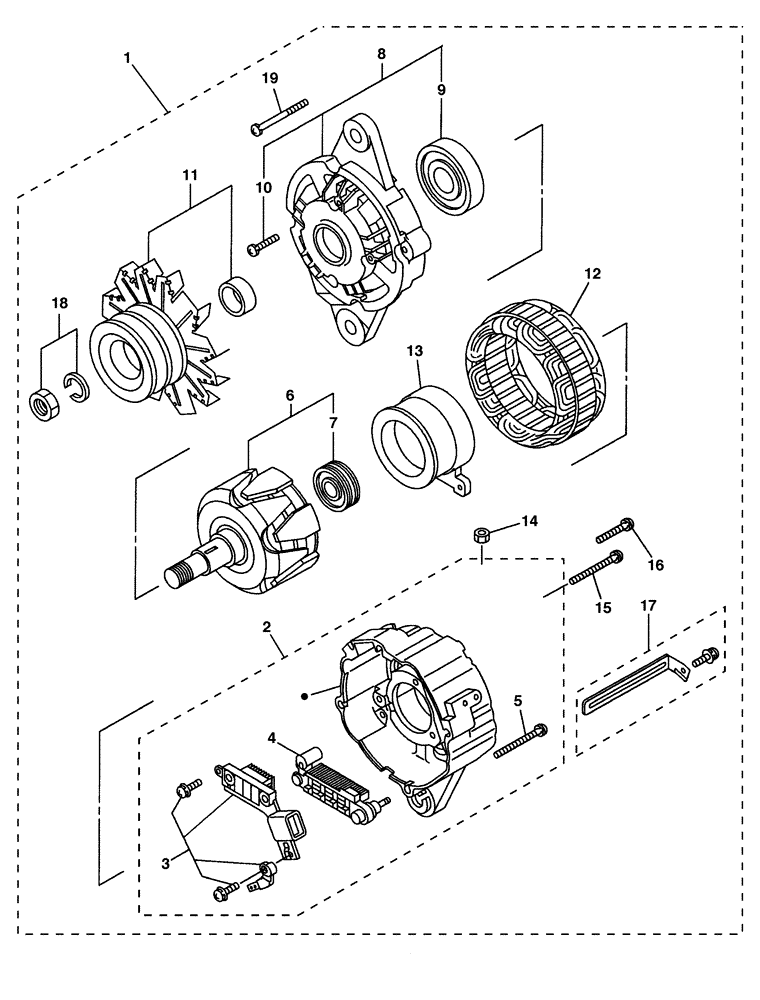

Запчасти Case CX350 (04-043-00[01]) - ALTERNATOR (05) - STEERING

1

438007A1

ALTERNATOR

1шт.

Consists Of Ref. Numbers 2 To 19

1шт.

1

438007A1R

REMAN-ALTERNATOR

1шт.

1

438007A1C

CORE-ALTERNATOR

Return Number

1шт.

2

438008A1

COVER

1шт.

Consists Of Ref. Numbers 3, 4, 5

1шт.

3

426804A1

REGULATOR

1шт.

4

438009A1

RECTIFIER

1шт.

5

438013A1

SCREW

1шт.

6

426801A1

ROTOR

1шт.

Consists Of Ref. Number 7

1шт.

7

426803A1

BALL BEARING

1шт.

8

426807A1

COVER

1шт.

Consists Of Ref. Numbers 9, 10

1шт.

9

426802A1

BALL BEARING

1шт.

10

426812A1

SCREW

1шт.

11

438010A1

PULLEY

1шт.

12

426809A1

STATOR

1шт.

13

426810A1

COIL

1шт.

14

438011A1

NUT

1шт.

15

426813A1

SCREW

1шт.

16

438012A1

SCREW

1шт.

17

438014A1

CLAMP

1шт.

18

426814A1

NUT

1шт.

19

426815A1

BOLT

1шт.
