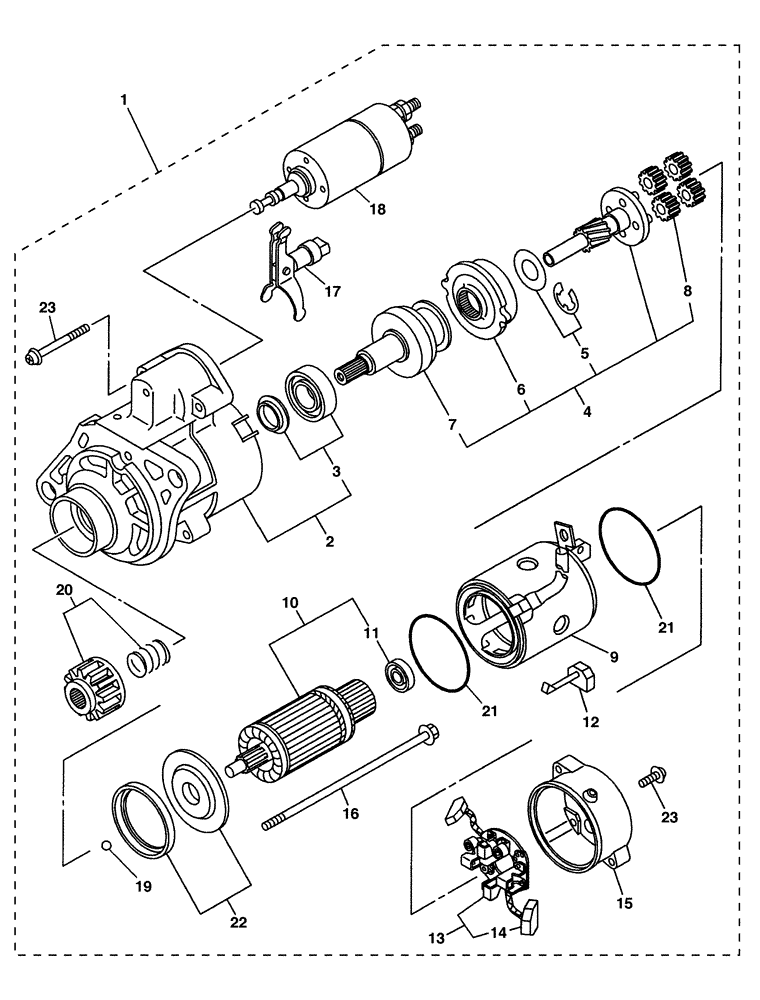

Запчасти Case CX350 (04-041-00[01]) - STARTER (05) - STEERING

1

437990A1

STARTING MOTOR

1шт.

Consists Of Ref. Numbers 2 To 23

1шт.

1

87667305R

REMAN-STARTER

CX350 CASE CRAWLER EXCAVATOR (EUROPE), Reman for New PN 437990A1

1шт.

1

87667305C

CORE-STARTER

Return Number

1шт.

2

437995A1

PLATE,SMALL SQUARE

1шт.

Consists Of Ref. Number 3

1шт.

3

438003A1

BALL BEARING

1шт.

4

438004A1

CLUTCH

1шт.

Consists Of Ref. Numbers 5 To 8

1шт.

5

365875A1

WASHER

1шт.

6

438165A1

GEAR

1шт.

7

438005A1

CLUTCH

1шт.

8

365866A1

GEAR

4шт.

9

438002A1

STATOR

1шт.

10

437994A1

ROTOR

1шт.

Consists Of Ref. Number 11

1шт.

11

438001A1

BALL BEARING

1шт.

12

437992A1

BRUSH, COMMUTATOR

BRUSH

2шт.

13

437993A1

BRUSH HOLDER

HOLDER, BRUSH

1шт.

Consists Of Ref. Number 14

1шт.

14

438000A1

SPRING

4шт.

15

437991A1

COVER

1шт.

16

426694A1

BOLT

1шт.

17

437996A1

SHIFTER FORK

1шт.

18

87697729

SWITCH

1шт.

19

365867A1

BALL

1шт.

20

437997A1

DRIVING SPROCKET

1шт.

21

437999A1

GASKET

2шт.

22

365840A1

GASKET

1шт.

23

437998A1

SET SCREW

1шт.
