(04-035-00[01]) - SIDE INSTRUMENT PANEL

Запчасти Case CX350 (04-035-00[01]) - SIDE INSTRUMENT PANEL (05) - STEERING

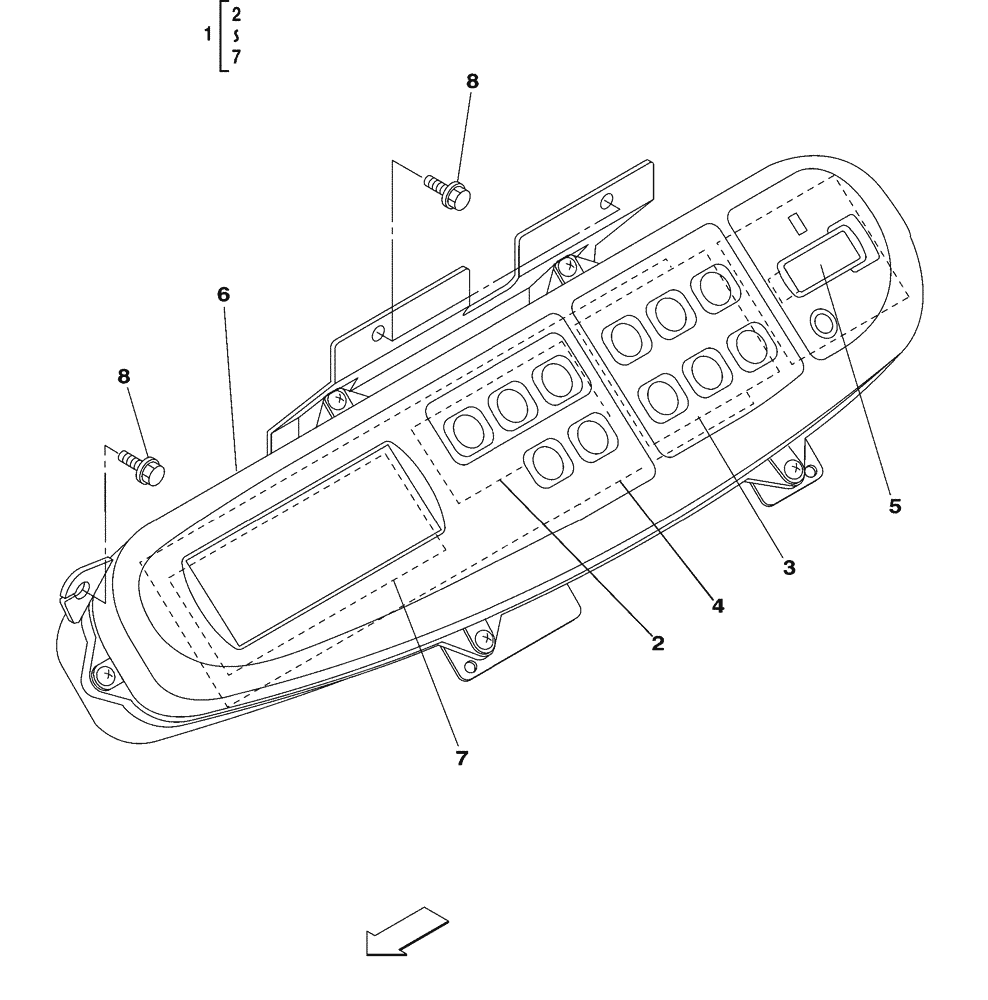

Схема запчастей Case CX350 - (04-035-00[01]) - SIDE INSTRUMENT PANEL (05) - STEERING
8
7
3
6
8
7
4
2
5
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHR3828

PANEL, INSTRUMENTS

PANEL, INSTRUMENT

1шт.

Consists Of Ref. Numbers 2 To 7

1шт.

2

KHR3072

PRINTED CIRCUIT BOAR

1шт.

3

KHR2440

PRINTED CIRCUIT BOAR

1шт.

4

KHR3829

CONTROL MONITOR

1шт.

5

KHR2442

HOURMETER

1шт.

6

KHR3159

HOUSING

1шт.

7

KHR2724

PRINTED CIRCUIT BOAR

1шт.

8

159602A1

BOLT,Sems, Hex, M6 x 16mm

6шт.
