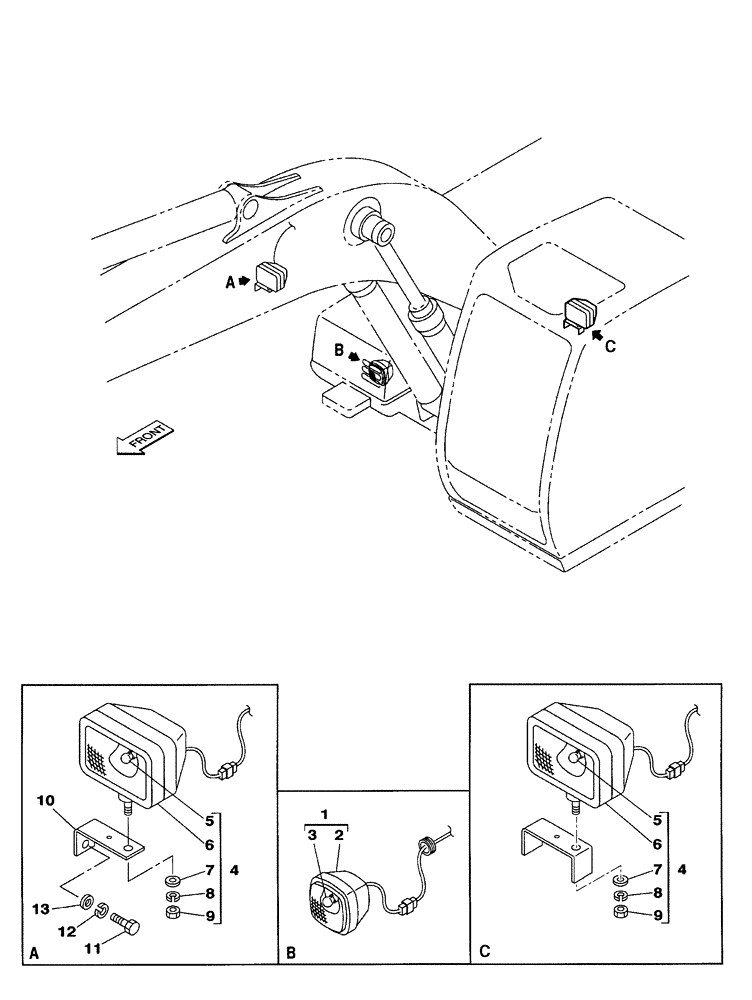

Запчасти Case CX350 (04-029-00[01]) - LAMP, WORK (05) - STEERING

1

KHR2475

WORK LAMP

1шт.

Consists Of Ref. Numbers 2, 3

1шт.

2

KHR2476

WORK LAMP

1шт.

3

KHR2477

BULB

1шт.

4

159598A1

PORTABLE LAMP

2шт.

Consists Of Ref. Numbers 5 To 9

1шт.

5

152812A1

BULB

1шт.

6

159615A1

LIGHT

1шт.

7

896-11014

WASHER,15.5mm ID x 28mm OD x 3mm Thk

15,5 x 28 x 3 mm

1шт.

8

892-16014

LOCK WASHER,M14, Hvy

1шт.

9

167034A1

NUT

1шт.

10

150834A1

BRACKET

1шт.

11

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

1шт.

12

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

1шт.

13

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

1шт.
