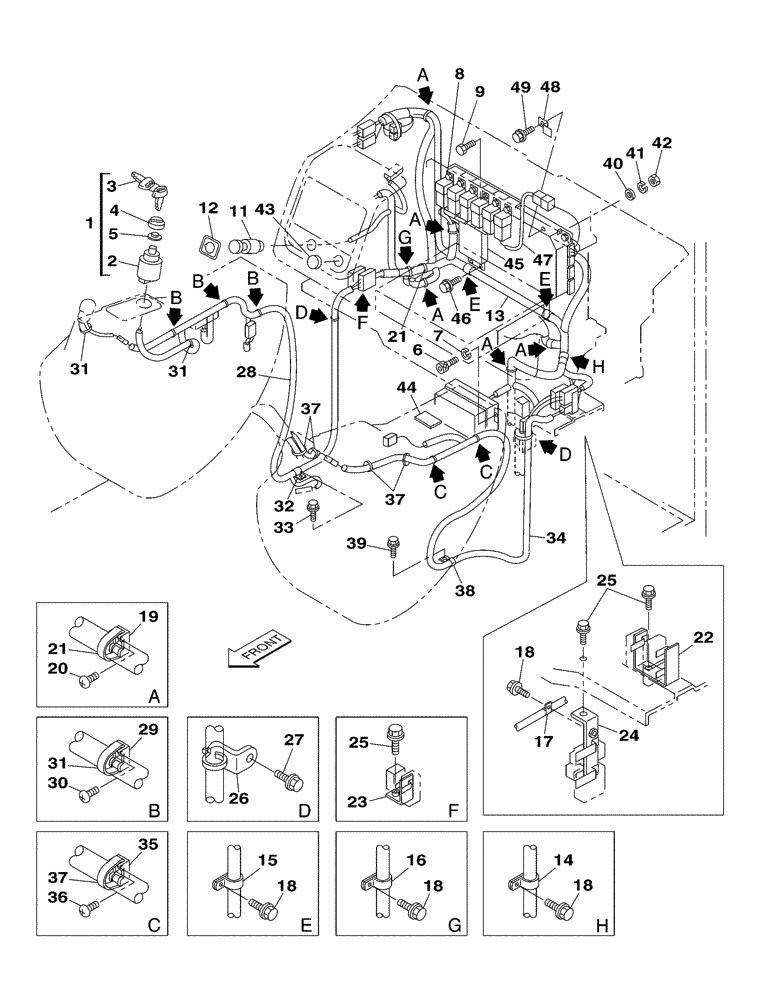

Запчасти Case CX350 (04-019-00[01]) - ELECTRICAL CIRCUIT - OPERATORS COMPARTMENT (05) - STEERING

1

KHR3270

IGNITION SWITCH

1шт.

Consists Of Ref. Numbers 2 To 5

1шт.

2

KHR3078

IGNITION SWITCH

1шт.

3

150979A1

IGNITION KEY

2шт.

4

KHR3080

CAP

1шт.

5

KHR3081

WASHER

1шт.

6

862-6020

HEX SOC SCREW,M6 x 20mm, Cl 12.9

2шт.

7

892-11006

LOCK WASHER,M6

2шт.

8

159919A1

RELAY

6шт.

9

159602A1

BOLT,Sems, Hex, M6 x 16mm

6шт.

11

KHR2488

LIGHTER, CIGARETTE

1шт.

Consists Of Ref. Number 12

1шт.

12

KHR3141

PROTECTOR

1шт.

13

KHR3787

HARNESS

1шт.

14

159149A1

COLLAR

1шт.

15

157807A1

COLLAR

2шт.

16

153039A1

CLAMP

1шт.

17

159150A1

COLLAR

1шт.

18

159602A1

BOLT,Sems, Hex, M6 x 16mm

5шт.

19

150860A1

COLLAR

5шт.

20

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

5шт.

21

150067A1

MOUNTING CLIP

150 mm

6шт.

22

KHR2746

BRACKET

1шт.

23

KHR2747

BRACKET

1шт.

24

KHR2748

BRACKET

1шт.

25

166345A1

BOLT

3шт.

26

KHR2580

CLAMP

2шт.

27

159905A1

BOLT,Sems, Hex, M6 x 25mm, Spcl

2шт.

28

KHR3181

HARNESS

1шт.

29

150860A1

COLLAR

3шт.

30

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

3шт.

31

150067A1

MOUNTING CLIP

150 mm

5шт.

32

157806A1

COLLAR

1шт.

33

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

1шт.

34

KHR2712

HARNESS

1шт.

35

150860A1

COLLAR

2шт.

36

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

2шт.

37

150067A1

MOUNTING CLIP

150 mm

5шт.

38

159150A1

COLLAR

1шт.

39

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

1шт.

40

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

41

892-11006

LOCK WASHER,M6

4шт.

42

829-1406

NUT,Hex, M6 x 1, Cl 10.9

4шт.

43

KHR2743

CAP COVER

1шт.

44

KHR2913

CAP

2шт.

45

167181A1

TRANSFORMER

1шт.

46

159602A1

BOLT,Sems, Hex, M6 x 16mm

4шт.

47

KTR0539

HARNESS

1шт.

48

165405A1

CLIP

1шт.

49

159602A1

BOLT,Sems, Hex, M6 x 16mm

1шт.
