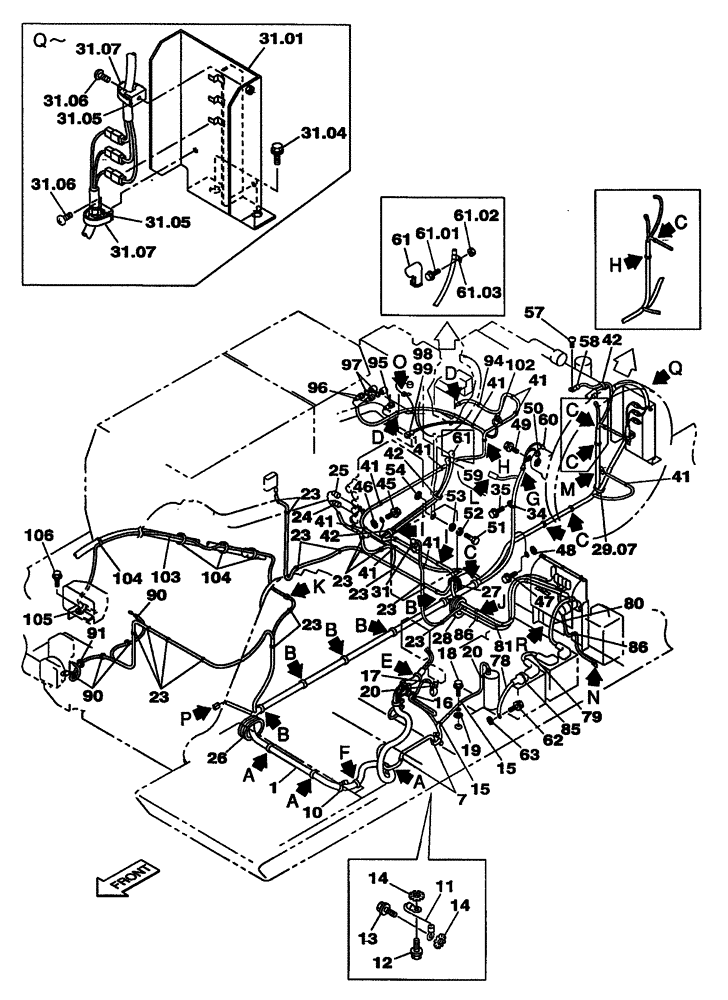

Запчасти Case CX350 (04-009-00[02]) - ELECTRICAL CIRCUIT - UPPERSTRUCTURE CHASSIS (05) - STEERING

1

KSR0992

WIRE HARNESS

1шт.

7

KHR2787

CLAMP

2шт.

10

150496A1

MOUNTING CLIP

250 mm

2шт.

11

KHR2713

ELECTRIC CABLE

1шт.

12

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

1шт.

13

159602A1

BOLT,Sems, Hex, M6 x 16mm

1шт.

14

893-11006

LOCK WASHER,Ext Tooth, M6

2шт.

15

KHR2787

CLAMP

2шт.

16

150520A1

GROMMET

1шт.

17

KHR10790

PRESSURE SWITCH

1шт.

18

167518A1

BOLT

1шт.

19

893-11008

LOCK WASHER,Ext Tooth, M8

1шт.

20

150496A1

MOUNTING CLIP

250 mm

2шт.

23

KHR2787

CLAMP

17шт.

24

KHR24010

PRESSURE SWITCH

1шт.

25

KHR10810

PRESSURE SWITCH

1шт.

26

KSJ2508

GROMMET

1шт.

27

KBJ2788

GROMMET

1шт.

28

KEJ0421

GROMMET

1шт.

29.07

150496A1

MOUNTING CLIP

1шт.

31

KHR2581

CLAMP

1шт.

31.01

KSR0998

BRACKET

1шт.

31.04

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

31.05

150860A1

COLLAR

2шт.

31.06

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

2шт.

31.07

150496A1

MOUNTING CLIP

250 mm

3шт.

34

KHR2584

CLAMP

3шт.

35

KHJ1215

BOLT,Spcl

3шт.

41

KHR2787

CLAMP

9шт.

42

150496A1

MOUNTING CLIP

250 mm

1шт.

45

159602A1

BOLT,Sems, Hex, M6 x 16mm

1шт.

46

893-11006

LOCK WASHER,Ext Tooth, M6

1шт.

47

KHJ1215

BOLT,Spcl

1шт.

48

893-11008

LOCK WASHER,Ext Tooth, M8

1шт.

49

KHR1828

BOLT,Spcl

1шт.

50

893-11005

LOCK WASHER,Ext Tooth, M5

1шт.

51

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

1шт.

52

183-112VR

SPRING WASHER

1шт.

53

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

54

893-11012

LOCK WASHER,Ext Tooth, M12

1шт.

57

151677A1

SCREW,Phil Pan Hd, M4 x 8mm, W/ Wshr

1шт.

58

159172A1

CAP

1шт.

59

159173A1

CAP

1шт.

60

159179A1

PROTECTION CAP

1шт.

61

KHR4114

PROTECTOR

1шт.

61.01

167518A1

BOLT

1шт.

61.02

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

61.03

162150A1

CLAMP

1шт.

62

167518A1

BOLT

1шт.

63

893-11008

LOCK WASHER,Ext Tooth, M8

1шт.

78

159915A1

ELECTRIC CABLE

1шт.

Serial Number : CX330 LC / CX330LR / CX330NLC / CX350 DCH33B0101 To DC33B0424

1шт.

78

KHR12370

POS BATTERY CABLE

1шт.

Serial Number : CX330 LC / CX330LR / CX330NLC / CX350 DC33B0425 And After

1шт.

79

KHR2430

ELECTRIC CABLE

1шт.

Serial Number : CX330 LC / CX330LR / CX330NLC / CX350 DCH33B0101 To DC33B0424

1шт.

79

KHR12100

POS BATTERY CABLE

1шт.

Serial Number : CX330 LC / CX330LR / CX330NLC / CX350 DC33B0425 And After

1шт.

80

KHR3075

ELECTRIC CABLE

1шт.

Serial Number : CX330 LC / CX330LR / CX330NLC / CX350 DCH33B0101 To DC33B0424

1шт.

80

KHR12190

POS BATTERY CABLE

1шт.

Serial Number : CX330 LC / CX330LR / CX330NLC / CX350 DC33B0425 And After

1шт.

81

KHR3169

ELECTRIC CABLE

1шт.

Serial Number : CX330 LC / CX330LR / CX330NLC / CX350 DCH33B0101 To DC33B0424

1шт.

81

KHR12200

ELECTRIC CABLE

1шт.

Serial Number : CX330 LC / CX330LR / CX330NLC / CX350 DC33B0425 And After

1шт.

85

150496A1

MOUNTING CLIP

250 mm

1шт.

86

KHR2787

CLAMP

2шт.

90

KHR2787

CLAMP

4шт.

91

159656A1

GROMMET

1шт.

94

KHR2787

CLAMP

1шт.

95

KHR2433

SENSOR

Hydraulic Oil Temperature

1шт.

96

168135A1

SENSOR,50 MPa

Oil Pressure

2шт.

Consists Of Ref. Number 97

1шт.

97

154475A1

O-RING

1шт.

98

KHR2915

SENSOR,5 MPa

Oil Pressure

1шт.

Consists Of Ref. Number 99

1шт.

99

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

102

150496A1

MOUNTING CLIP

250 mm

1шт.

103

KHR3170

HARNESS

1шт.

104

150496A1

MOUNTING CLIP

250 mm

12шт.

105

KHR2583

CLAMP

1шт.

106

159906A1

BOLT,Sems, Hex, M6 x 20mm, Spcl

1шт.

140

150067A1

MOUNTING CLIP

150 mm

3шт.

Not Illustrated

1шт.

REF

INSTRUCTION

Electrical, Circuit

1шт.

See Page(s) 04-009-01-02

1шт.
