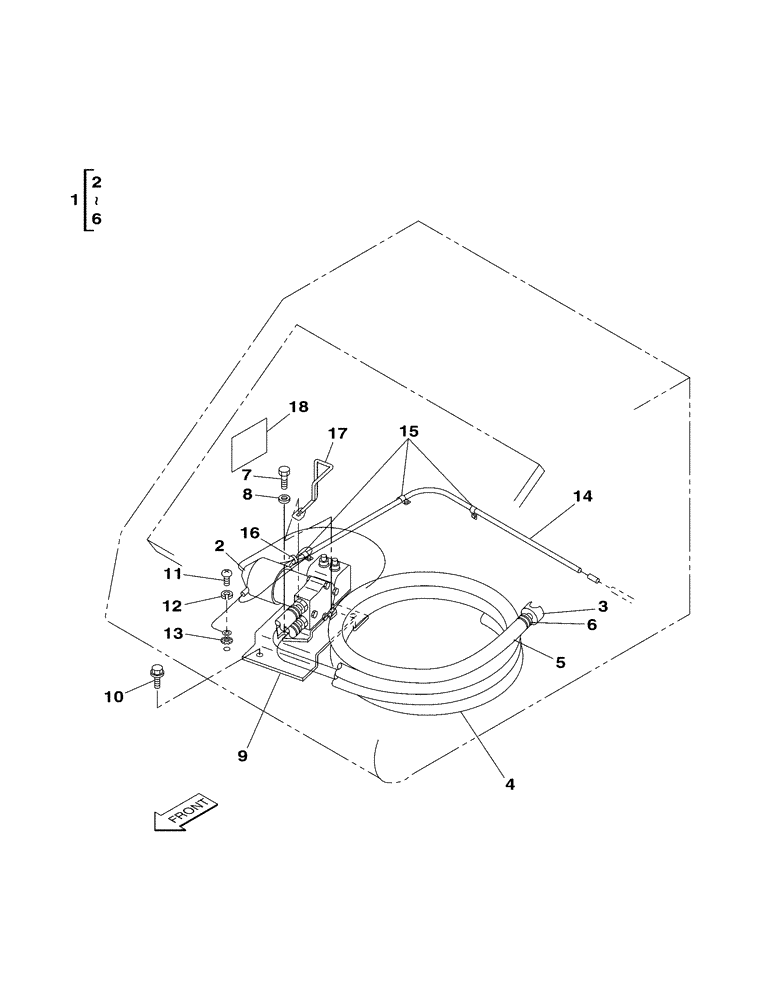

Запчасти Case CX350 (03-009-00[01]) - FUEL FILLING (04) - ELECTRICAL SYSTEMS

1

166552A1

ELECTRIC PUMP

1шт.

Consists Of Ref. Numbers 2 To 6

1шт.

2

166233A1

FUEL PUMP

1шт.

Consists Of Ref. Numbers 2A

1шт.

2a

LL001040

SWITCH ASSY

1шт.

Not Illustrated

1шт.

3

166192A1

FILTER STRAINER

1шт.

4

KHR17100

FUEL HOSE

1шт.

5

KHR17110

FUEL HOSE

1шт.

6

157710A1

COLLAR

3шт.

8

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

9

KSR0906

SUPPORT

1шт.

10

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

11

840-1512

SCREW,Pan, M5 x 12mm, Gr 4.8

1шт.

12

892-11005

LOCK WASHER,M5

1шт.

13

893-11005

LOCK WASHER,Ext Tooth, M5

1шт.

14

KHR3082

HARNESS

1шт.

15

KHR2787

CLAMP

4шт.

16

150496A1

MOUNTING CLIP

250 mm

1шт.

17

169043A1

PROTECTOR

1шт.

18

168103A1

DECAL

1шт.

7

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

3шт.
