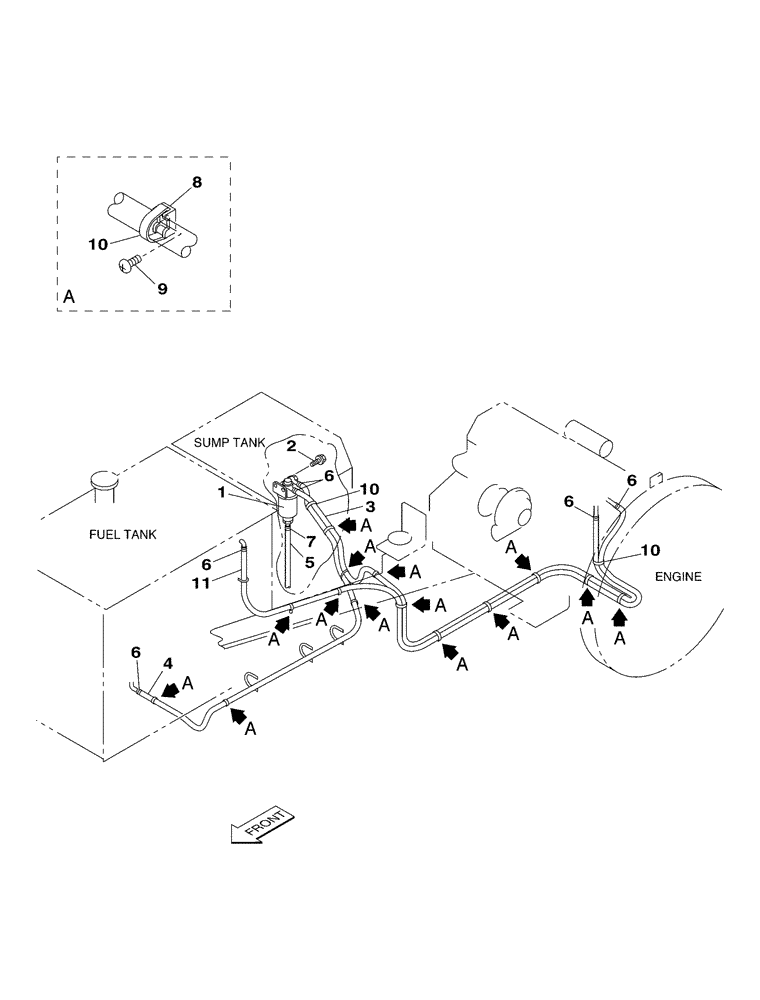

Запчасти Case CX350 (03-005-00[01]) - FUEL SYSTEM (04) - ELECTRICAL SYSTEMS

1

KTH0672

WATER TRAP

1шт.

See Page(s) 03-005-05

1шт.

2

166347A1

BOLT,Sems, M10 x 30mm

2шт.

3

KHH0457

FUEL HOSE,3300.00 mm

1шт.

4

KHH0419

HOSE

2200 mm (86-5/8 in)

1шт.

5

157624A1

TUBE,9.5 mm ID, 14.5 mm OD

1шт.

6

KHH0405

MOUNTING CLIP

6шт.

7

150067A1

MOUNTING CLIP

150 mm

1шт.

8

150860A1

COLLAR

14шт.

9

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

10.9

14шт.

10

150496A1

MOUNTING CLIP

250 mm

16шт.

11

KHH0459

FUEL HOSE,3400.00 mm

1шт.
