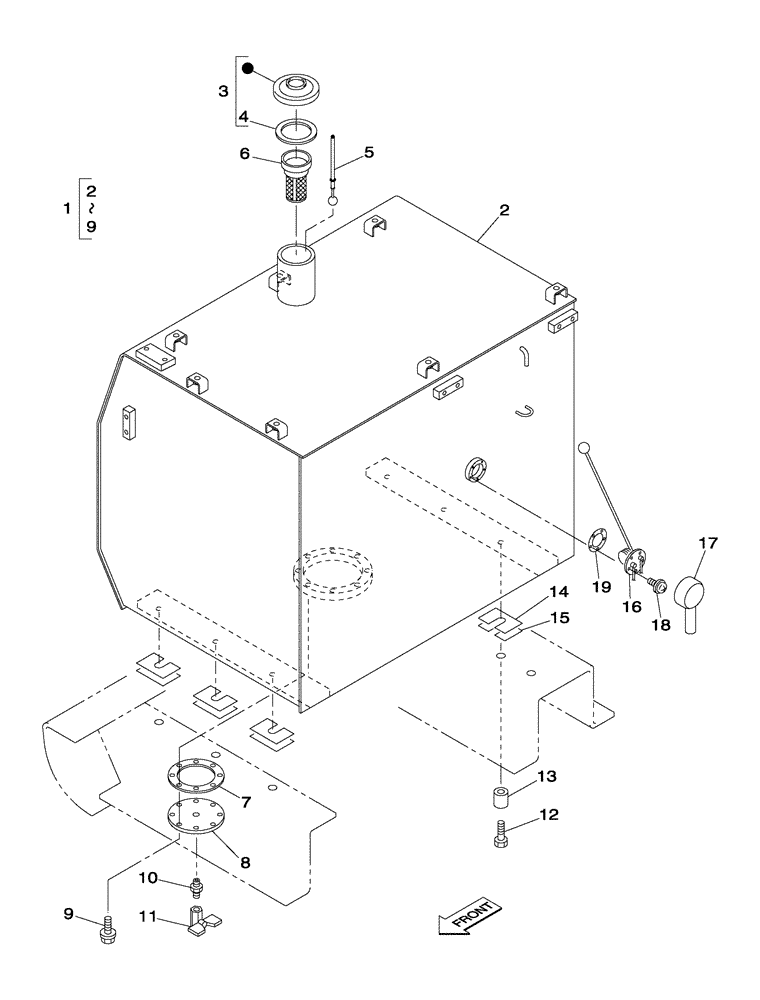

Запчасти Case CX350 (03-003-00[01]) - FUEL TANK (04) - ELECTRICAL SYSTEMS

1

KSH0903

FUEL TANK

1шт.

Consists Of Ref. Numbers 2 To 9

1шт.

2

NSS

NOT SOLD SEPARAT

1шт.

3

150492A1

LOCKABLE FUEL CAP

1шт.

Consists Of Ref. Number 4

1шт.

4

163804A1

GASKET

1шт.

5

KHH0330

GAUGE

1шт.

6

150146A1

FILTER

1шт.

6a

KHH0500

FILTER

1шт.

7

151322A1

GASKET,3mm Thk

1шт.

8

151320A1

COVER

1шт.

9

166052A1

BOLT

8шт.

10

150847A1

HYD CONNECTOR

1шт.

11

158923A1

DRAIN VALVE

1шт.

12

827-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

6шт.

13

162301A1

SPACER

6шт.

14

150166A1

SHIM

0,80 mm (0,032 in)

1шт.

15

150479A1

SHIM

2,00 mm (0,079 in)

1шт.

16

163257A1

SENSOR

1шт.

17

159698A1

COVER

1шт.

18

151688A1

SCREW,Phil Pan Hd, M5 x 12mm, W/ Wshr

5шт.

19

152591A1

GASKET,2mm Thk

1шт.
