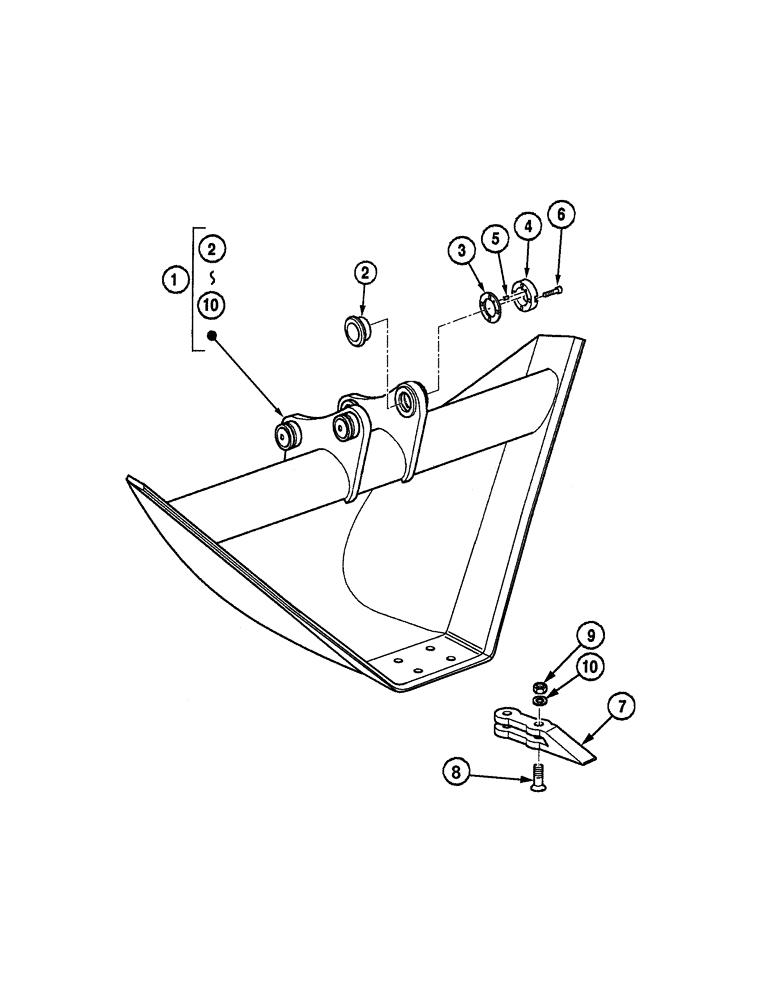

Запчасти Case CX350 (09-135-00[01]) - V-LINE BUCKET (09) - CHASSIS

1

NSS

NOT SOLD SEPARAT

1шт.

See Sales Department

1шт.

Bucket, 0.50m - 3.30m (19-3/4 in - 130 in)

1шт.

Consists Of Ref. Numbers 2 To 10

1шт.

2

J1756150

BUSHING

90 x 130 x 91 mm

1шт.

3

432390A1

SHIM

0,50 mm (0,0197 in)

1шт.

3

432391A1

SHIM

1,00 mm (0,0394 in)

1шт.

4

F1756147

CAP

1шт.

5

R1136031

SPLIT PIN/SAFETY PIN

3шт.

6

G532916

SCREW,Hex Skt Hd, M16 x 50mm, Cl 10.9

4шт.

7

447996A1

TEETH

3шт.

8

450122A1

BOLT

M18 x 90; 10

6шт.

9

J834103

NUT

M18; 10

6шт.

10

NLS

NO LONGER SERVICED

W18

6шт.
