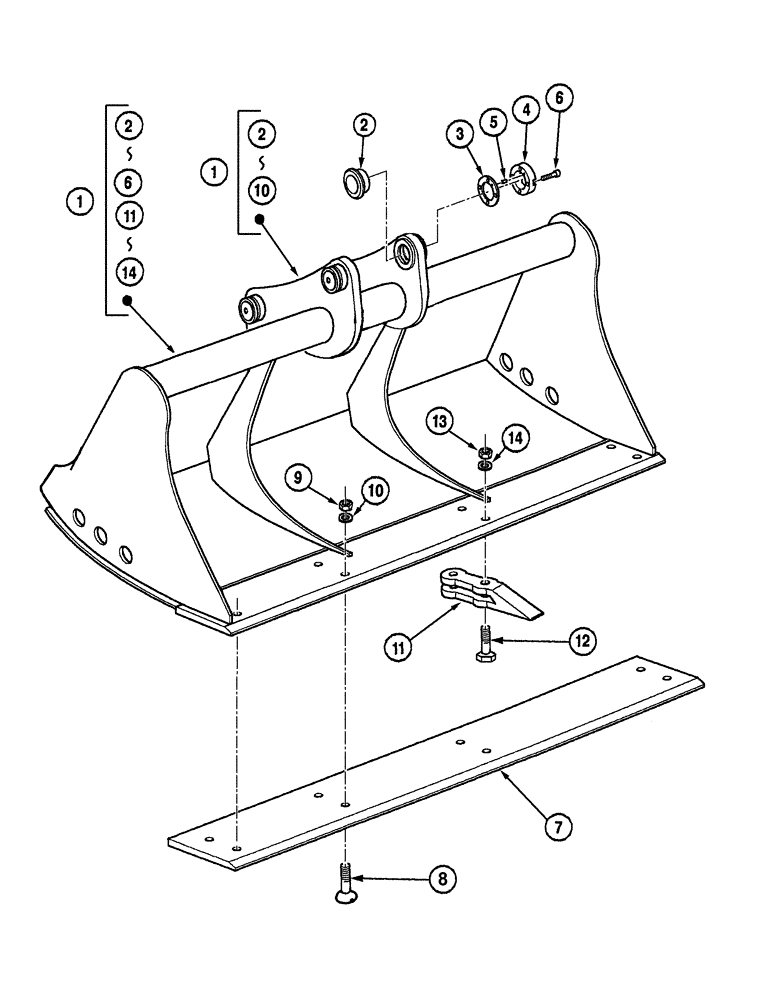

Запчасти Case CX350 (09-133-00[01]) - DITCH CLEANING BUCKET - CX330 LC / CX330 NLC (09) - CHASSIS

1

NSS

NOT SOLD SEPARAT

1шт.

See Sales Department

1шт.

Bucket, 1380L - 2.40m (94-1/2 in)

1шт.

2

J1756150

BUSHING

90 x 130 x 91 mm

1шт.

Bucket, 1380L - 2.40m (94-1/2 in)

1шт.

3

432390A1

SHIM

0,50 mm (0,0197 in)

1шт.

Bucket, 1380L - 2.40m (94-1/2 in)

1шт.

3

432391A1

SHIM

1,00 mm (0,0394 in)

1шт.

Bucket, 1380L - 2.40m (94-1/2 in)

1шт.

4

F1756147

CAP

1шт.

Bucket, 1380L - 2.40m (94-1/2 in)

1шт.

5

R1136031

SPLIT PIN/SAFETY PIN

3шт.

Bucket, 1380L - 2.40m (94-1/2 in)

1шт.

6

G532916

SCREW,Hex Skt Hd, M16 x 50mm, Cl 10.9

4шт.

Bucket, 1380L - 2.40m (94-1/2 in)

1шт.

7

448002A1

BLADE

1шт.

Bucket, 1380L - 2.40m (94-1/2 in)

1шт.

8

450287A1

BOLT

M16 x 60; 10.9

18шт.

Bucket, 1380L - 2.40m (94-1/2 in)

1шт.

9

R34193

NUT

M16; 10

18шт.

Bucket, 1380L - 2.40m (94-1/2 in)

1шт.

10

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

18шт.

Bucket, 1380L - 2.40m (94-1/2 in)

1шт.

11

447995A1

TEETH

9шт.

Bucket, 1380L - 2.40m (94-1/2 in)

1шт.

12

Z1133899

SCREW

M16 x 70

18шт.

Bucket, 1380L - 2.40m (94-1/2 in)

1шт.

13

R34193

NUT

M16; 10

18шт.

Bucket, 1380L - 2.40m (94-1/2 in)

1шт.

14

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

18шт.

Bucket, 1380L - 2.40m (94-1/2 in)

1шт.

1

NSS

NOT SOLD SEPARAT

1шт.

See Sales Department

1шт.

Bucket, 1440L - 2.50m (98-1/2 in)

1шт.

2

J1756150

BUSHING

90 x 130 x 91 mm

1шт.

Bucket, 1440L - 2.50m (98-1/2 in)

1шт.

3

432390A1

SHIM

0,50 mm (0,0197 in)

1шт.

Bucket, 1440L - 2.50m (98-1/2 in)

1шт.

3

432391A1

SHIM

1,00 mm (0,0394 in)

1шт.

Bucket, 1440L - 2.50m (98-1/2 in)

1шт.

4

F1756147

CAP

1шт.

Bucket, 1440L - 2.50m (98-1/2 in)

1шт.

5

R1136031

SPLIT PIN/SAFETY PIN

3шт.

Bucket, 1440L - 2.50m (98-1/2 in)

1шт.

6

G532916

SCREW,Hex Skt Hd, M16 x 50mm, Cl 10.9

4шт.

Bucket, 1440L - 2.50m (98-1/2 in)

1шт.

7

448003A1

BLADE

1шт.

Bucket, 1440L - 2.50m (98-1/2 in)

1шт.

8

450287A1

BOLT

M16 x 60; 10.9

20шт.

Bucket, 1440L - 2.50m (98-1/2 in)

1шт.

9

R34193

NUT

M16; 10

20шт.

Bucket, 1440L - 2.50m (98-1/2 in)

1шт.

10

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

20шт.

Bucket, 1440L - 2.50m (98-1/2 in)

1шт.

11

447995A1

TEETH

10шт.

Bucket, 1440L - 2.50m (98-1/2 in)

1шт.

12

Z1133899

SCREW

M16 x 70

20шт.

Bucket, 1440L - 2.50m (98-1/2 in)

1шт.

13

R34193

NUT

M16; 10

20шт.

Bucket, 1440L - 2.50m (98-1/2 in)

1шт.

14

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

20шт.

Bucket, 1440L - 2.50m (98-1/2 in)

1шт.
