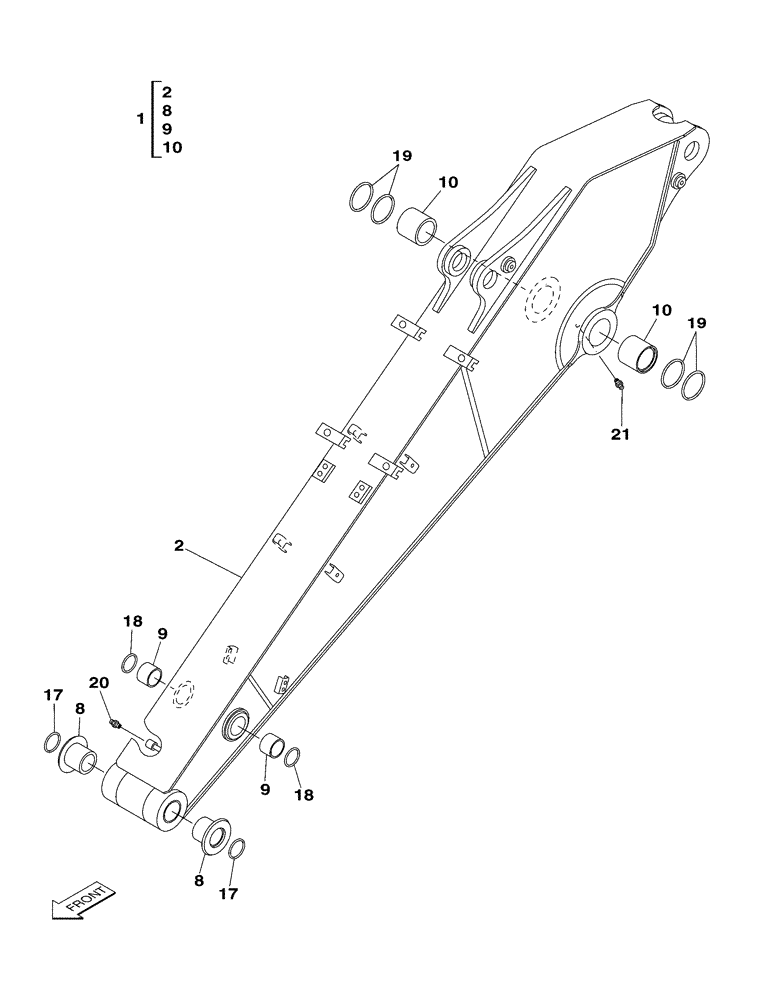

Запчасти Case CX350 (09-113-00/2[01]) - DIPPER (3.25 M) (09) - CHASSIS

1

KSV1656

DIPPER

1шт.

Replaced By KSV13210, Consists Of Ref. Numbers 2, 8, 9, 10

1шт.

1

KSV13210

DIPPER

1шт.

Consists Of Ref. Numbers 2, 8, 9, 10

1шт.

2

NSS

NOT SOLD SEPARAT

Dipper

1шт.

8

KSV1407

BUSHING

2шт.

9

KSV1408

BUSHING

2шт.

10

KSV1312

BUSHING

2шт.

17

159648A1

SEAL,90mm ID x 105mm OD x 5mm Thk

2шт.

18

160401A1

SEAL,85mm ID x 100mm OD x 5mm Thk

2шт.

19

163002A1

SEAL

4шт.

20

153630A1

LUBE NIPPLE

1шт.

21

153631A1

LUBE NIPPLE,1/8"-27 NPT

1шт.
