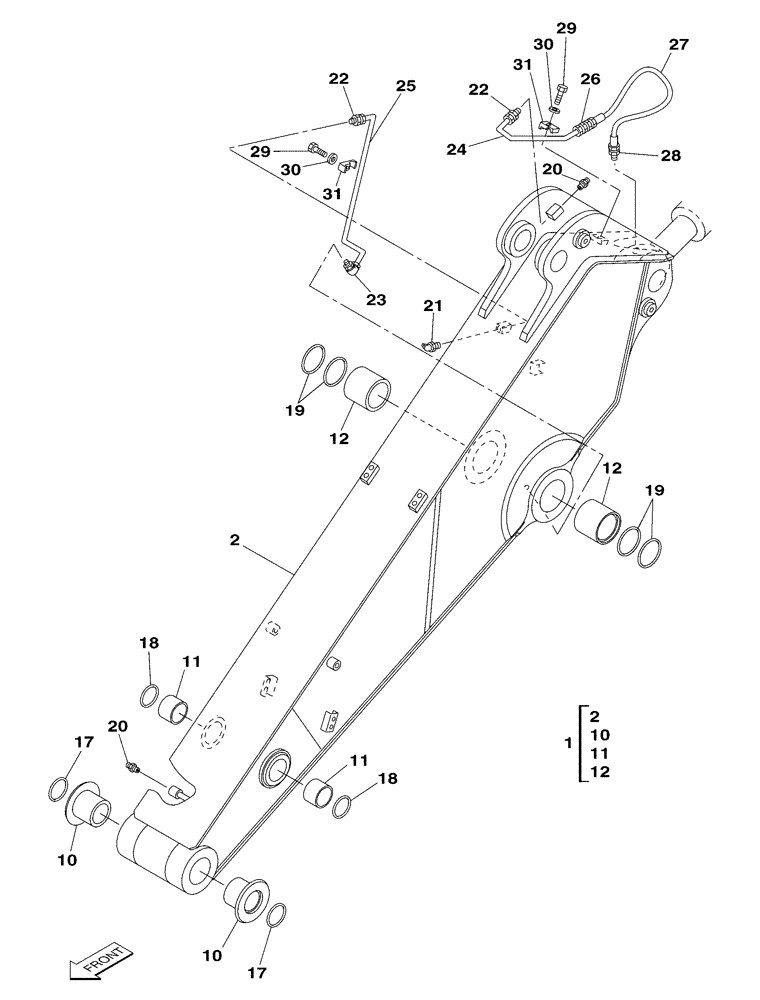

Запчасти Case CX350 (09-105-00/2[01]) - DIPPER (2.20 M) (09) - CHASSIS

1

KSV1658

DIPPER

1шт.

Replaced By KSV13290, Consists Of Ref. Numbers 2, 10, 11, 12

1шт.

1

KSV13290

DIPPER

1шт.

Consists Of Ref. Numbers 2, 10, 11, 12

1шт.

2

NSS

NOT SOLD SEPARAT

Dipper

1шт.

10

KSV1407

BUSHING

2шт.

11

KSV1408

BUSHING

2шт.

12

KSV1312

BUSHING

2шт.

17

159648A1

SEAL,90mm ID x 105mm OD x 5mm Thk

2шт.

18

160401A1

SEAL,85mm ID x 100mm OD x 5mm Thk

2шт.

19

163002A1

SEAL

4шт.

20

153630A1

LUBE NIPPLE

2шт.

21

153912A1

LUBE NIPPLE,90 Degree, 1/8"-27 NPT x 21.5mm lg

1шт.

22

152599A1

MULTIPOLE CONNECTOR

2шт.

23

152627A1

ELBOW

1шт.

24

KSV1547

TUBE ASSY.

1шт.

25

KSV1539

TUBE ASSY.,6 mm ID x 8 mm OD

1шт.

26

152032A1

UNION

1шт.

27

KHJ2049

HOSE

1шт.

28

KRJ4050

ADAPTER

1шт.

30

153081A1

WASHER

2шт.

31

168377A1

CLAMP

2шт.

29

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

2шт.
