(09-093-10[01]) - CAB GUARD - ANTI-VANDALISM - POLYCARBONATE WINDOW GLASSES

Запчасти Case CX350 (09-093-10[01]) - CAB GUARD - ANTI-VANDALISM - POLYCARBONATE WINDOW GLASSES (09) - CHASSIS

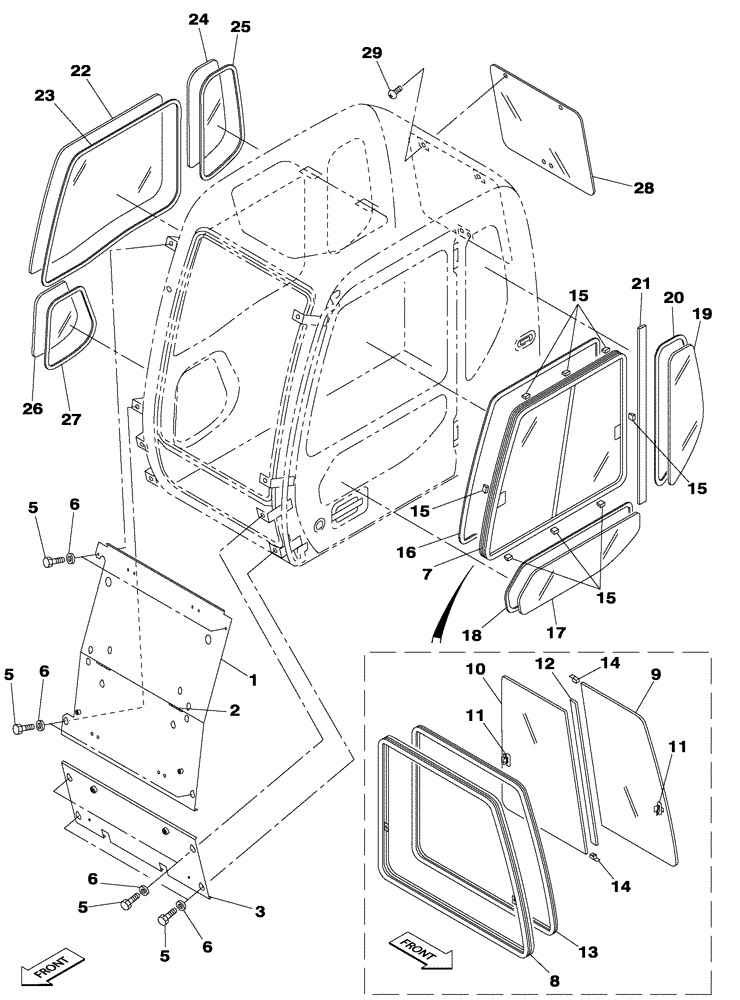

Схема запчастей Case CX350 - (09-093-10[01]) - CAB GUARD - ANTI-VANDALISM - POLYCARBONATE WINDOW GLASSES (09) - CHASSIS
20
11
9
5
6
5
17
15
27
24
7
5
6
19
22
15
3
25
11
26
14
8
29
23
16
21
14
1
12
6
6
10
18
2
5
13
28
15
15
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHN3414

COVER

1шт.

Consists Of Ref. Number 2

1шт.

2

152590A1

HINGE

2шт.

3

KHN2870

COVER

1шт.

5

167472A1

BOLT,High Strength, M10 x 20mm, Cl 10.9

8шт.

5

162880A1

BOLT

4шт.

6

150409A1

WASHER

10,5 x 21 x 3,2 mm

8шт.

7

KHN2906

WINDOW ASSY

1шт.

Consists Of Ref. Numbers 8 To 14

1шт.

8

KHN2815

FRAME

1шт.

9

KHN2948

GLASS

1шт.

10

KHN2949

GLASS

1шт.

11

162829A1

LOCK

2шт.

12

KHN2819

SEAL

1шт.

13

KHN2818

SEAL, GLASS

1шт.

14

KHN2820

RUBBER BLOCK

2шт.

15

KHN3352

SPACER

8шт.

16

KHN2813

SEAL, GLASS

1шт.

17

KHN2922

GLASS

1шт.

18

KHN2921

SEAL

1шт.

19

KHN2938

GLASS

1шт.

20

KHN2936

SEAL, GLASS

1шт.

21

KHN3005

SEAL PROTECTION

1шт.

22

KHN2939

GLASS

1шт.

23

KHN2637

WEATHERSTRIP

1шт.

24

KHN2941

GLASS

1шт.

25

KHN2639

WEATHERSTRIP

1шт.

26

KHN2940

GLASS

1шт.

27

KHN2641

WEATHERSTRIP

1шт.

28

KHN3565

GLASS

1шт.

29

KHN2931

SCREW,Spcl

4шт.
