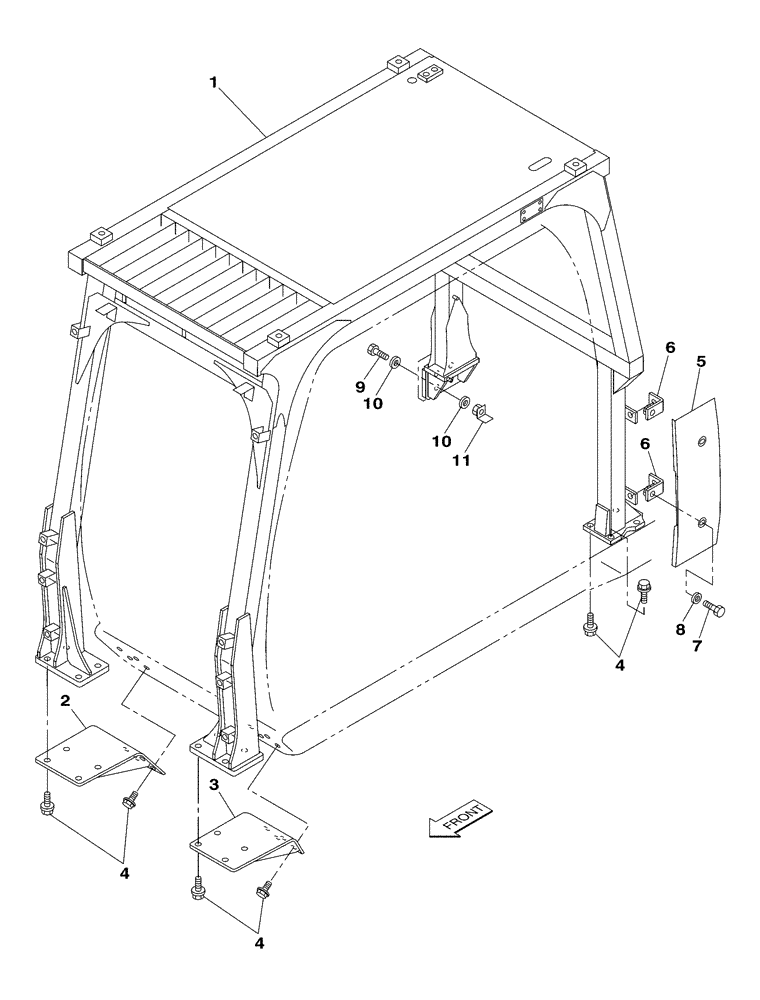

Запчасти Case CX350 (09-093-00[01]) - CAB GUARD (09) - CHASSIS

1

KTN1289

PROTECTOR

1шт.

2

KTN1291

BRACKET

1шт.

3

KTN1290

SUPPORT

1шт.

4

165930A1

BOLT,Sems, M16 x 55mm

20шт.

5

KTN1320Y2

COVER

1шт.

6

KTN1323

SUPPORT

2шт.

7

KTB0452

BOLT,Spcl

2шт.

8

150811A1

WASHER

M12

2шт.

9

827-16090

BOLT,Hex, M16 x 2 x 90mm, Cl 10.9

4шт.

10

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

8шт.

11

KTN1392

SPECIAL NUT

4шт.
