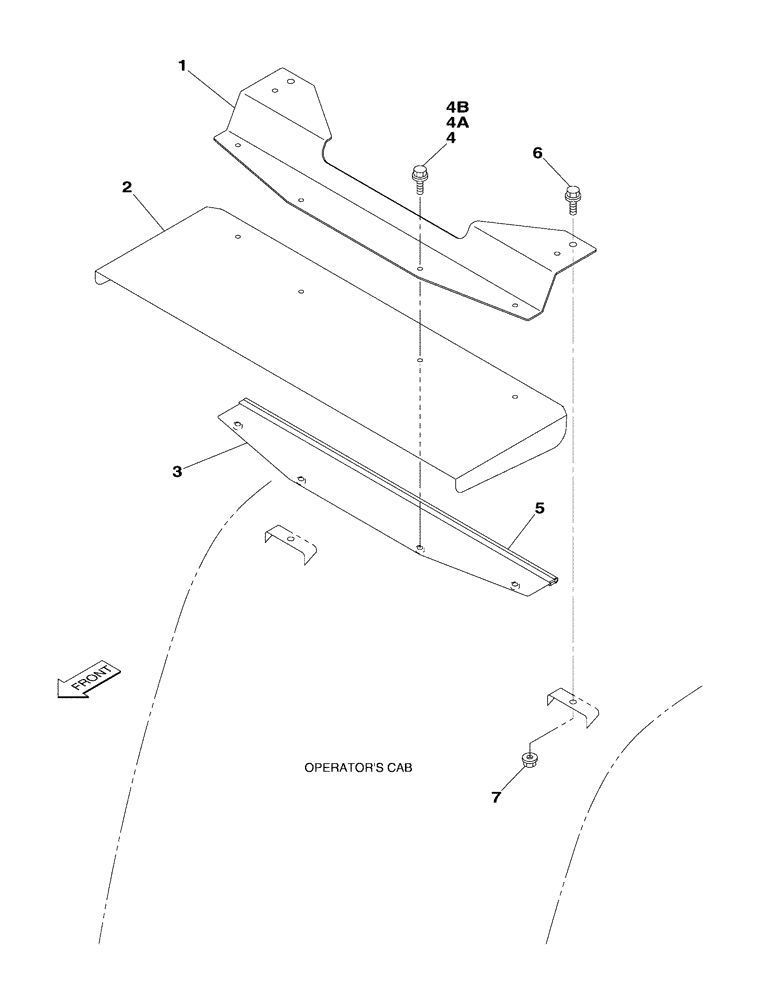

Запчасти Case CX350 (09-085-00[01]) - CAB SUN VISOR - EXTERNAL (09) - CHASSIS

KHN2999

DEFLECTOR

1шт.

Consists Of Ref. Numbers 1 To 4B

1шт.

1

KHN2898

BRACKET

1шт.

2

KHN2899

DEFLECTOR

1шт.

3

KHN2900

HOLDER

1шт.

4

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

4шт.

4a

183-108VR

SPRING WASHER

4шт.

4b

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

5

KHN2901

RUBBER STRIP

1шт.

6

166352A1

BOLT

2шт.

7

150475A1

FLANGE NUT

2шт.
