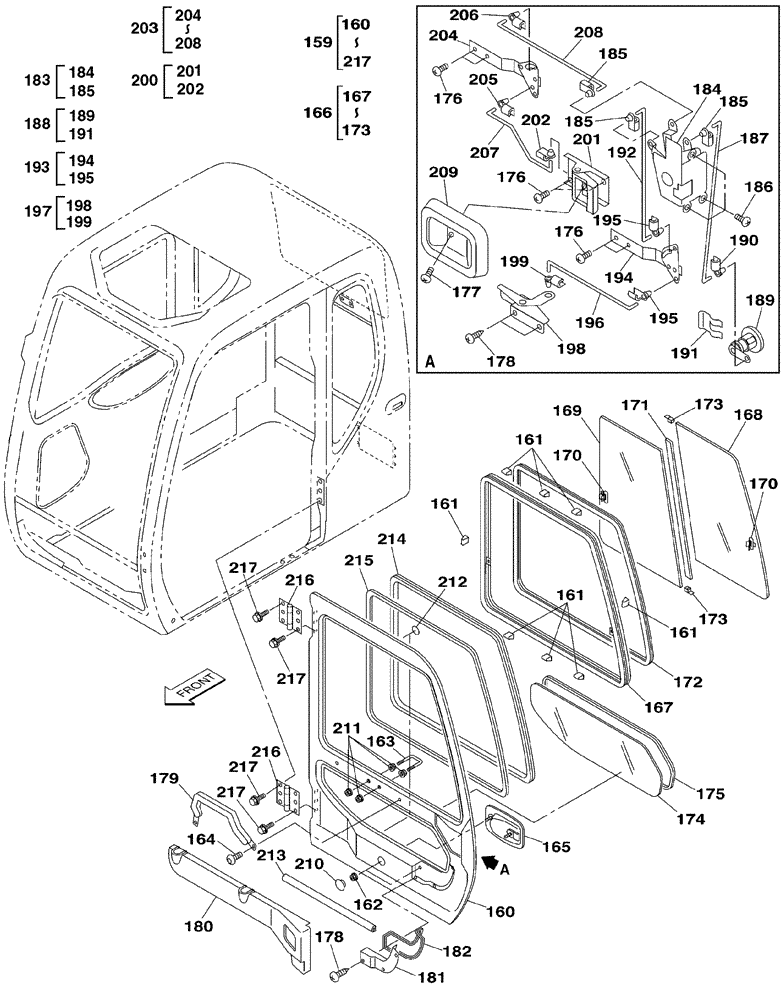

Запчасти Case CX350 (09-081-00[01]) - CAB - CAB DOOR (09) - CHASSIS

159

KHN2917

CABIN DOOR

1шт.

Consists Of Ref. Numbers 160-217

1шт.

160

KHN3300

DOOR

1шт.

161

KHN3352

SPACER

8шт.

162

161453A1

FLANGE NUT

2шт.

163

159570A1

U-BOLT

BOLT "U"

1шт.

164

159586A1

BOLT,Hex Skt, M10 x 1.5 x 25mm

M10 x 25 x 1,5

2шт.

165

KHN2415

HANDLE

1шт.

166

KHN2629

WINDOW ASSY

1шт.

Consists Of Ref. Numbers 167-173

1шт.

167

KHN2815

FRAME

1шт.

168

KHN2816

CAB GLASS

1шт.

169

KHN2817

CAB GLASS

1шт.

170

162829A1

LOCK

2шт.

171

KHN2819

SEAL

1шт.

172

KHN2818

SEAL, GLASS

1шт.

173

KHN2820

RUBBER BLOCK

2шт.

174

KHN2630

CAB GLASS

1шт.

175

KHN2631

SEAL

1шт.

176

KHN2741

SCREW,Spcl

M6 x 1 x 16

6шт.

177

KHN2758

SCREW,Spcl

M5 x 10 x 0,8

1шт.

178

KHN2773

SCREW,Spcl

M6 x 16

5шт.

179

KHN2774

HANDLE

1шт.

180

KHN2775

PADDING

1шт.

181

KHN2776

PADDING

1шт.

182

KHN2777

SEAL

1шт.

183

KHN2778

LOCK ASSY

1шт.

Consists Of Ref. Numbers 184, 185

1шт.

184

NSS

NOT SOLD SEPARAT

1шт.

185

NSS

NOT SOLD SEPARAT

Clip

3шт.

186

KHN2781

SCREW,Spcl

M6 x 1 x 16

3шт.

187

KHN2782

ROD

1шт.

188

KHN2783

LOCK ASSY

1шт.

Consists Of Ref. Numbers 189 - 191

1шт.

189

NSS

NOT SOLD SEPARAT

1шт.

190

KHN2785

BALL JOINT

1шт.

191

KHN2786

CLIP,ELECTRICAL

1шт.

192

KHN2788

ROD

1шт.

193

KHN2789

BRACKET

1шт.

Consists Of Ref. Numbers 194, 195

1шт.

194

NSS

NOT SOLD SEPARAT

Crank

1шт.

195

NSS

NOT SOLD SEPARAT

Clip

2шт.

196

KHN2792

ROD

1шт.

197

KHN2793

BRACKET

1шт.

Consists Of Ref. Numbers 198, 199

1шт.

198

NSS

NOT SOLD SEPARAT

1шт.

199

NSS

NOT SOLD SEPARAT

Clip

1шт.

200

KHN2796

HANDLE

1шт.

Consists Of Ref. Numbers 201, 202

1шт.

201

NSS

NOT SOLD SEPARAT

1шт.

202

NSS

NOT SOLD SEPARAT

Clip

1шт.

203

KHN2799

BRACKET

1шт.

Consists Of ref. Numbers 204 - 208

1шт.

204

NSS

NOT SOLD SEPARAT

1шт.

205

NSS

NOT SOLD SEPARAT

Clip

1шт.

206

NSS

NOT SOLD SEPARAT

Clip

1шт.

207

NSS

NOT SOLD SEPARAT

Rod, Control

1шт.

208

NSS

NOT SOLD SEPARAT

Rod, Control

1шт.

209

KHN2805

DOOR COVER

1шт.

210

KHN2806

PLUG

1шт.

211

KHN2808

SPECIAL NUT

M10

4шт.

212

KHN2811

SEAL

2шт.

213

KHN2812

WEATHERSTRIP

1шт.

214

KHN2813

SEAL, GLASS

1шт.

215

KHN2814

SEAL

1шт.

216

KHN2907

HINGE

2шт.

217

KHN2850

BOLT,Spcl

M10 x 25

12шт.
