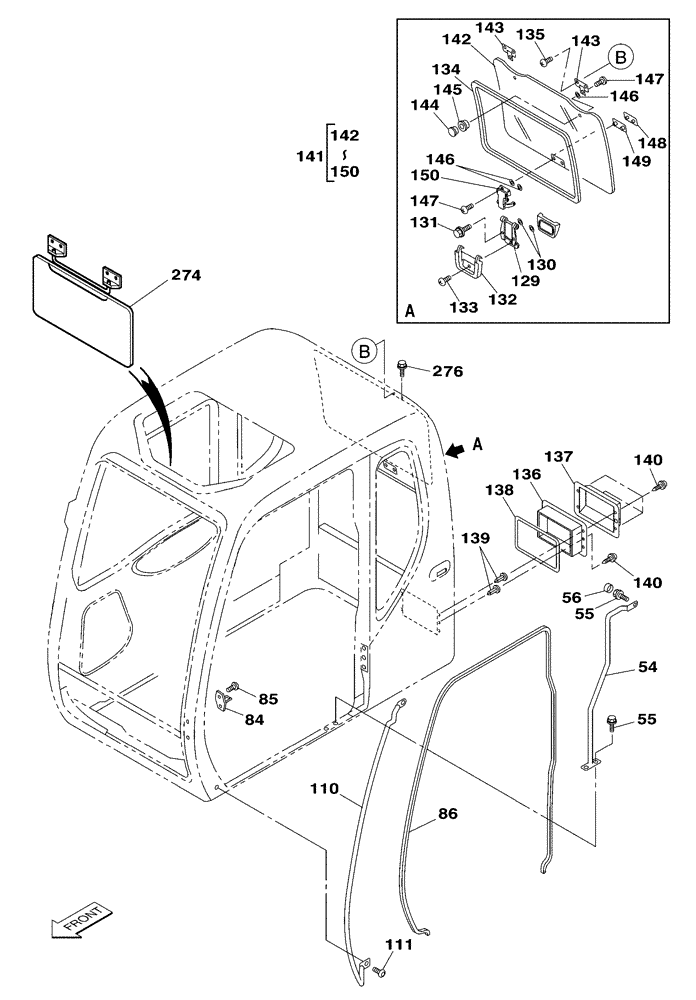

Запчасти Case CX350 (09-079-00[01]) - CAB - REAR WINDOW - SUN SHIELD - RAIL, GRAB (09) - CHASSIS

54

KHN2933

HANDLE

1шт.

55

KHN2678

BOLT,Spcl

M10 x 1,5 x 25

3шт.

56

KHN2679

CAP

1шт.

84

KHN2701

CATCH PLATE

1шт.

85

KHN2702

SCREW,Spcl

M8 x 20

2шт.

86

KHN2703

WEATHERSTRIP

1шт.

110

KHN2726

HANDLE

1шт.

111

KHN2727

BOLT,Spcl

M12 x 1,25 x 30

2шт.

129

KHN2754

BRACKET

1шт.

130

KHN2755

WASHER

2шт.

131

KHN2756

BOLT,Spcl

M6 x 1 x 16

2шт.

132

KHN2757

HANDLE

1шт.

133

KHN2758

SCREW,Spcl

M5 x 10 x 0,8

1шт.

134

KHN2759

WEATHERSTRIP

1шт.

135

KHN2768

SCREW,Spcl

M6 x 1 x 16

4шт.

136

KHN2769

COVER

1шт.

137

KHN2770

HOUSING

1шт.

138

KHN2771

SEAL

1шт.

139

KHN2772

GROMMET

5шт.

140

KHN2773

SCREW,Spcl

M6 x 16

5шт.

141

KHN2844

WINDOW ASSY

1шт.

Consists Of Ref. Numbers 142 To 150

1шт.

142

KHN2644

CAB GLASS

1шт.

143

KHN2760

HINGE

2шт.

144

KHN2761

NUT

2шт.

145

KHN2762

GROMMET

2шт.

146

KHN2763

WASHER

4шт.

147

KHN2764

SCREW,Spcl

M5 x 0,8 x 10

4шт.

148

KHN2765

STIFFENER

1шт.

149

KHN2766

GASKET

1шт.

150

KHN2767

HANDLE

1шт.

274

REF

INSTRUCTION

Sun Visor

1шт.

See Page(s) 09-085-01 01

1шт.

276

NSS

NOT SOLD SEPARAT

Screw

1шт.
