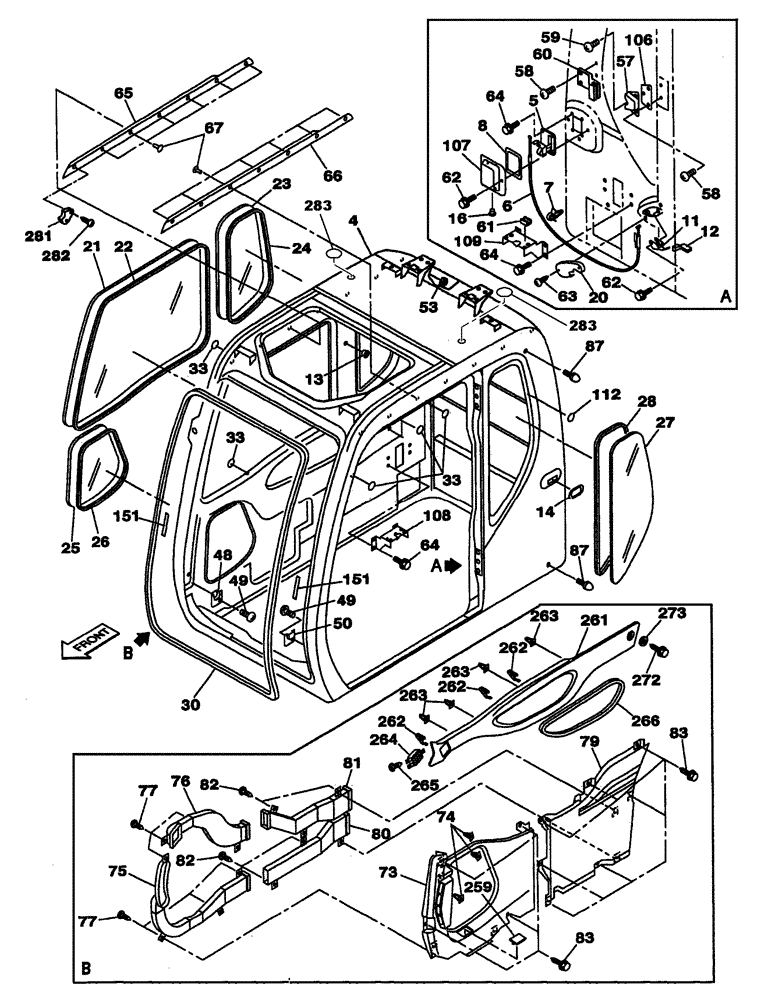

Запчасти Case CX350 (09-071-01[01]) - CAB AND GLASS (09) - CHASSIS

KHN10080

CAB

1шт.

Consists Of Ref. Numbers 4 To 151, 277 To 283, See Page 04-045-00 01 Ref. 7 To 276, See Page 09-075-01 01 Ref. 9 To 258, See Page 09-079-00 01 Ref. 54 To 276, See Page 09-081-01 01 Ref. 159 To 217

1шт.

4

KHN3662

CAB BODY

1шт.

5

161384A1

RH DOOR LOCK

1шт.

6

161380A1

CABLE

1шт.

7

161381A1

COLLAR

4шт.

8

KHN3026

SEAL

1шт.

11

161376A1

LEVER

1шт.

12

161375A1

HANDLE

1шт.

13

161358A1

COAT HOOK

1шт.

14

161373A1

GROMMET

1шт.

16

161383A1

GROMMET

1шт.

20

161378A1

COVER

1шт.

21

KHN2636

CAB GLASS

1шт.

22

KHN2637

WEATHERSTRIP

1шт.

23

KHN2638

CAB GLASS

1шт.

24

KHN2639

WEATHERSTRIP

1шт.

25

KHN2640

CAB GLASS

1шт.

26

KHN2641

WEATHERSTRIP

1шт.

27

KHN2642

CAB GLASS

1шт.

28

KHN2643

SEAL

1шт.

30

KHN2655

WEATHERSTRIP,4508mm L

1шт.

33

KHN2658

SEAL

5шт.

48

KHN2670

RETAINER

1шт.

49

KHN2671

SCREW

M6 x 1 x 20

2шт.

50

KHN2672

RETAINER

1шт.

53

KHN2676

STOP

1шт.

57

KHN2680

LATCH HOOK

1шт.

58

KHN2681

SCREW

M6 x 1 x 30

4шт.

59

KHN2682

SCREW,Spcl

M6 x 1 x 12

1шт.

60

KHN2683

HOLDER

1шт.

61

KHN2684

STOP

1шт.

62

KHN2686

BOLT,Spcl

M6 x 1 x 20

5шт.

63

KHN2687

SCREW,Spcl

M5 x 14

2шт.

64

KHN2688

BOLT,Spcl

M8 x 25

12шт.

65

KHN2689

PROTECTOR

1шт.

66

KHN2690

PROTECTOR

1шт.

67

KHN2691

ANCHOR

13шт.

73

KHN3641

TRIM PANEL

1шт.

74

KHN2292

COLLAR

3шт.

75

KHR4278

DUCT

1шт.

76

KHR4276

DUCT

1шт.

77

KHR2739

SELF-TAP SCREW

6шт.

79

KHN3621

TRIM PANEL

1шт.

80

KHR4279

DUCT

1шт.

81

KHR4277

DUCT

1шт.

82

KHR2739

SELF-TAP SCREW

6шт.

83

KHN2700

BOLT,Spcl

M6 x 16

12шт.

87

KHN2704

STOP

2шт.

106

KHN2722

LEDGER PLATE

1шт.

107

KHN2723

CAP ASSY.

1шт.

108

KHN2724

BRACKET

1шт.

109

KHN2725

SUPPORT

1шт.

112

KHN2729

SEAL

1шт.

151

KHN2982

PAD, RUBBER

2шт.

259

KHN3637

TRIM PANEL

1шт.

261

KHN3634

TRIM PANEL

1шт.

262

KHN2293

COLLAR

3шт.

263

KHN2292

COLLAR

4шт.

264

KHN3636

BOX

1шт.

265

KHN3022

SCREW

3шт.

266

KHN2294

SEAL

1шт.

272

KHN2316

BOLT

1шт.

273

150529A1

WASHER

1шт.

277

REF

INSTRUCTION

Circuit, Electrical

1шт.

Not Illustrated, See Page(s) 04-045-00 01

1шт.

278

REF

INSTRUCTION

Door, Cab

1шт.

Not Illustrated, See Page(s) 09-081-01 01

1шт.

279

REF

INSTRUCTION

Windshield, Opening Roof

1шт.

Not Illustrated, See Page(s) 09-075-01 01

1шт.

280

REF

INSTRUCTION

Glass, Rear, Sun Shield, Rail, Grab

1шт.

Not Illustrated, See Page(s) 09-079-00 01

1шт.

281

KHN2974

BRACKET

1шт.

282

KHN2975

SCREW,Spcl

1шт.

283

KHN2947

PLUG

6шт.
