(09-061-00[01]) - AIR CONDITIONING - CONDENSER AND RECEIVER-DRYER

Запчасти Case CX350 (09-061-00[01]) - AIR CONDITIONING - CONDENSER AND RECEIVER-DRYER (09) - CHASSIS

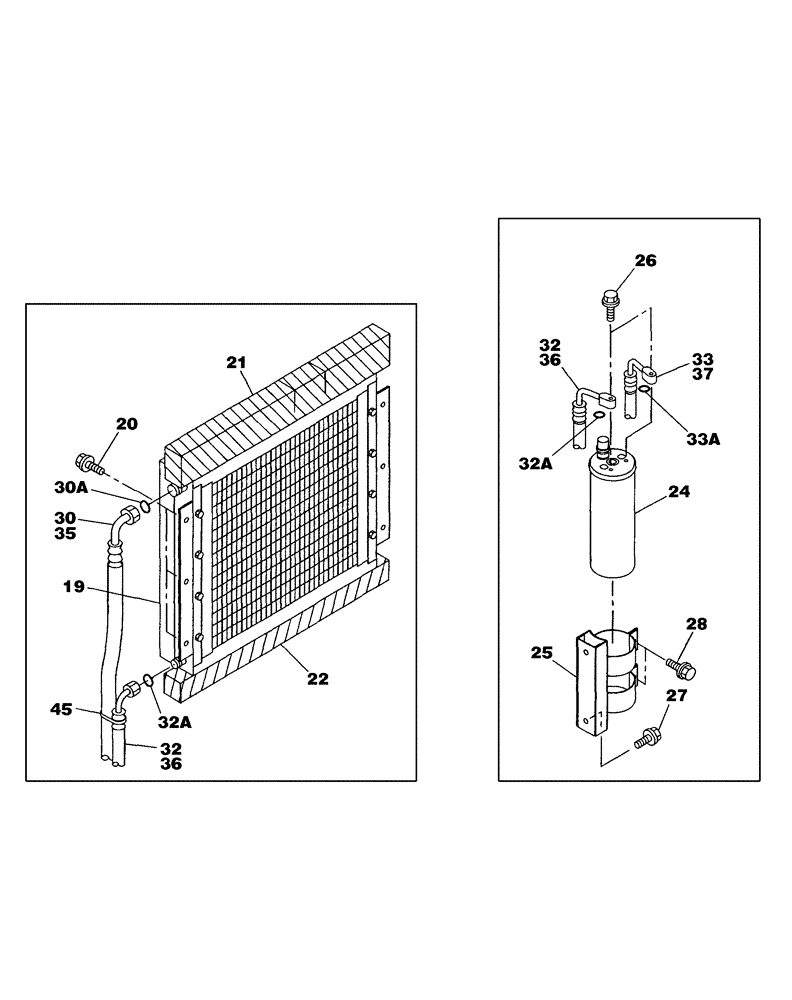

Схема запчастей Case CX350 - (09-061-00[01]) - AIR CONDITIONING - CONDENSER AND RECEIVER-DRYER (09) - CHASSIS
21
36
20
28
45
22
30a
32
32a
30
26
27
33
25
37
33a
24
35
32a
19
32
36
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

19

KHR2989

CONDENSER

1шт.

20

167182A1

BOLT,Sems, M8 x 25mm

6шт.

21

KSR0918

SEAL

1шт.

22

KTR0530

SEAL

1шт.

24

167528A1

RECEIVER-DRYER

1шт.

25

159635A1

SUPPORT

1шт.

26

162043A1

BOLT,Spcl, M6

2шт.

27

167182A1

BOLT,Sems, M8 x 25mm

2шт.

28

159906A1

BOLT,Sems, Hex, M6 x 20mm, Spcl

2шт.

30

KHR3167

HOSE

1шт.

Consists Of Ref. Number 30A

1шт.

30a

169053A1

O-RING

2шт.

32

KHR3087

HOSE

1шт.

Consists Of Ref. Number 32A

1шт.

32a

169054A1

O-RING

2шт.

33

KHR3088

HOSE

1шт.

Consists Of Ref. Number 33A

1шт.

33a

169054A1

O-RING

2шт.

35

158069A1

PLASTIC-RUBBER TUBE

1шт.

36

157768A1

PLASTIC-RUBBER TUBE

1шт.

37

151175A1

PLASTIC-RUBBER TUBE

1шт.

45

150496A1

MOUNTING CLIP

250 mm

5шт.
