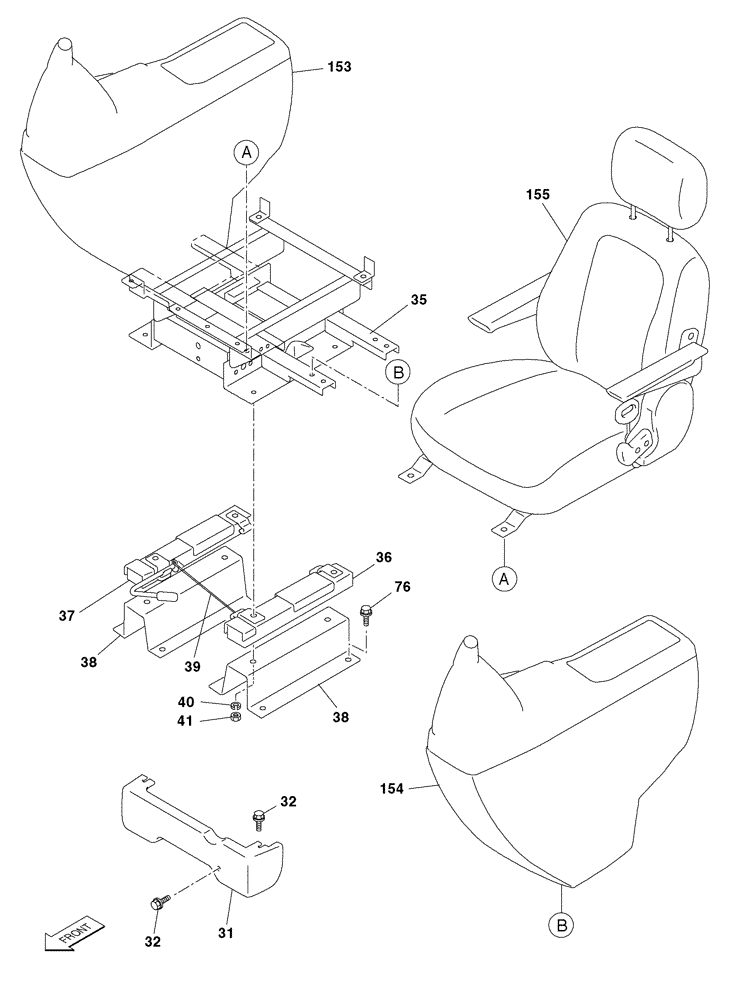

Запчасти Case CX350 (09-047-01[01]) - OPERATORS COMPARTMENT - SEAT (09) - CHASSIS

31

KHN3586

COVER

1шт.

32

KHN2132

BOLT,Hex Flg Hd, M6 x 16

4шт.

35

KHN2823

HOLDER

1шт.

36

KHN2473

SLIDE GUIDE

1шт.

37

KHN2474

SLIDE GUIDE

1шт.

38

KHN2475

CENTRAL RAIL

1шт.

39

KHN2476

CENTRAL RAIL

1шт.

40

162R010VR

NUT

M10; 10

8шт.

41

892-11010

LOCK WASHER,M10

8шт.

76

166346A1

BOLT,Sems, M10

8шт.

153

REF

INSTRUCTION

Arm, Right

1шт.

See Page(s) 09-055-01 01

1шт.

154

REF

INSTRUCTION

Arm, Left

1шт.

See Page(s) 09-051-01 01

1шт.

155

87344703

DRIVER SEAT

1шт.

Pneumatic - See Page(s) 09-049-01 01

1шт.

155

87344650

DRIVER SEAT

1шт.

Mechanical - See Page(s) 09-049-02 01

1шт.
