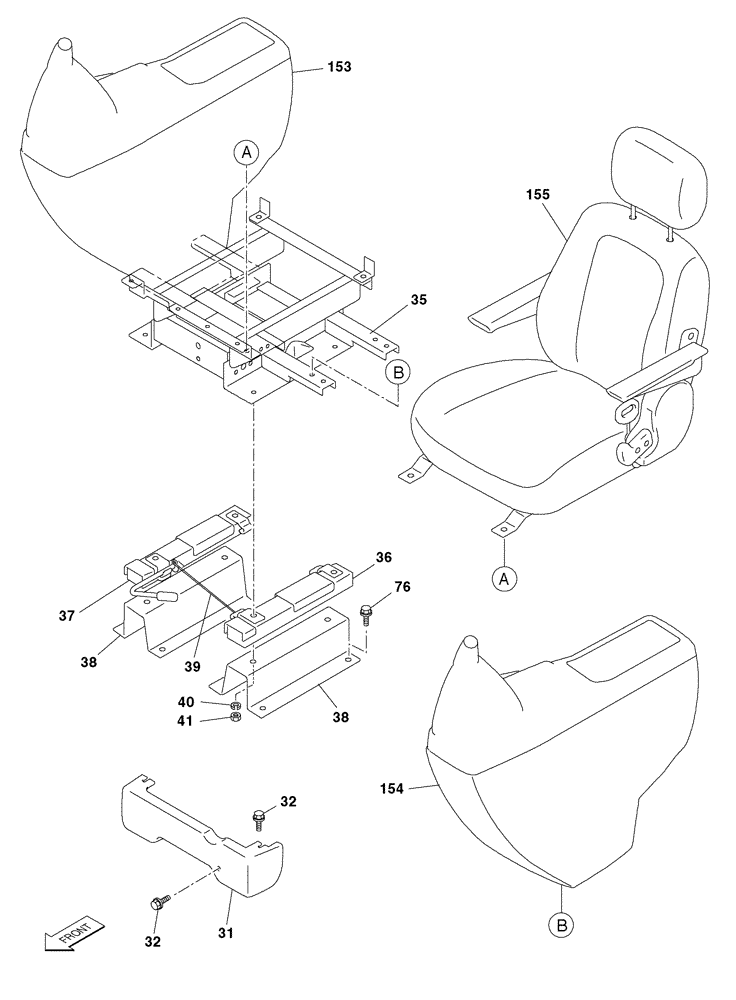

Запчасти Case CX350 (09-047-00[01]) - OPERATORS COMPARTMENT - SEAT (09) - CHASSIS

31

KHN3586

COVER

1шт.

32

KHN2132

BOLT,Hex Flg Hd, M6 x 16

4шт.

35

KHN2823

HOLDER

1шт.

36

KHN2473

SLIDE GUIDE

1шт.

37

KHN2474

SLIDE GUIDE

1шт.

38

KHN2475

CENTRAL RAIL

1шт.

39

KHN2476

CENTRAL RAIL

1шт.

40

829-1410

NUT,M10 x 1.5, Cl 10.9

8шт.

41

892-11010

LOCK WASHER,M10

8шт.

76

166346A1

BOLT,Sems, M10

8шт.

153

REF

INSTRUCTION

Arm, Right

1шт.

See Page(s) 09-055-00-01

1шт.

154

REF

INSTRUCTION

Arm, Left

1шт.

See Page(s) 09-051-00-01

1шт.

155

400153A1

SEAT ASSY.

1шт.

See Page(s) 09-049-00-01

1шт.
