(09-045-01[01]) - OPERATORS COMPARTMENT - BOX

Запчасти Case CX350 (09-045-01[01]) - OPERATORS COMPARTMENT - BOX (09) - CHASSIS

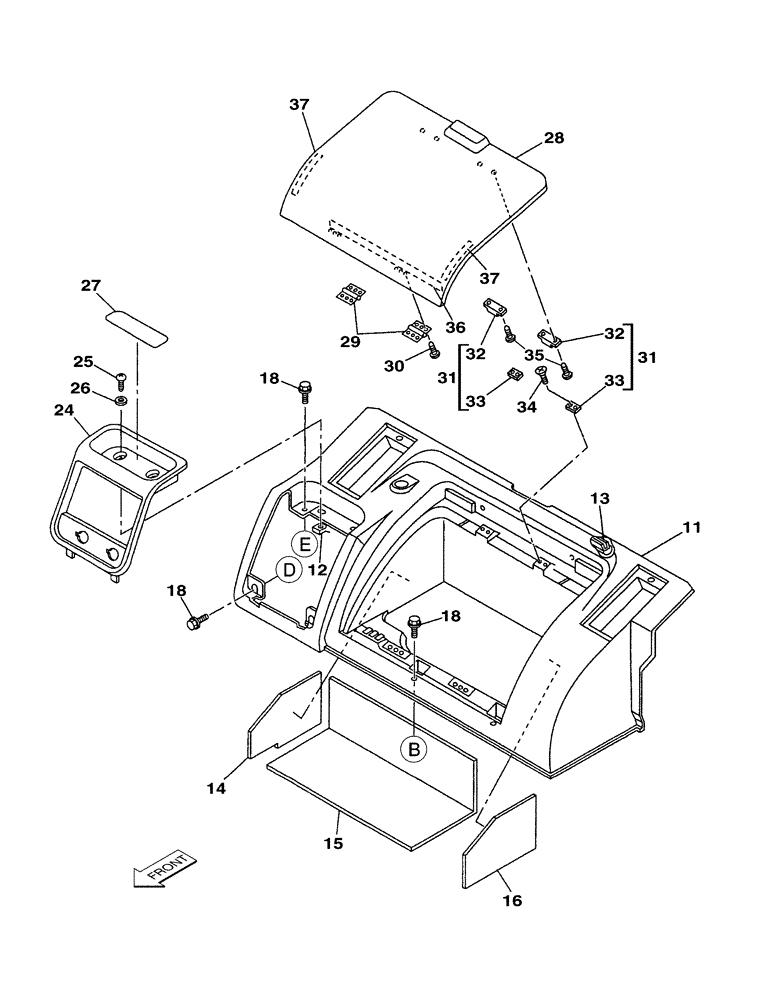

Схема запчастей Case CX350 - (09-045-01[01]) - OPERATORS COMPARTMENT - BOX (09) - CHASSIS
18
30
29
37
31
24
28
32
32
18
35
36
25
16
31
37
33
14
26
13
12
34
27
15
18
11
33
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

11

KHN3591

BOX

1шт.

12

KHN2303

SPECIAL NUT

1шт.

13

KHN2304

SEAL

2шт.

14

KHN2305

SEAL

1шт.

15

KHN2306

SEAL

1шт.

16

KHN2307

SEAL

1шт.

18

KHN2309

BOLT,Spcl

2шт.

24

KHN2238

BRACKET

1шт.

25

KHR2740

SELF-TAP SCREW

2шт.

26

KHN2317

WASHER

2шт.

27

KHN2322

SEAL

1шт.

28

KHN3597

COVER

1шт.

29

KHN2321

HINGE

2шт.

30

KHR2731

SELF-TAP SCREW

12шт.

31

KHN2320

CATCH

2шт.

Consists Of Ref. Numbers 32, 33

1шт.

32

KHN2333

MAGNET

1шт.

33

KHN2334

PLATE

1шт.

34

152031A1

SCREW

4шт.

35

KHR2729

SELF-TAP SCREW

4шт.

36

KHN2323

RUBBER SEAL

1шт.

37

KHN2324

SEAL

2шт.
