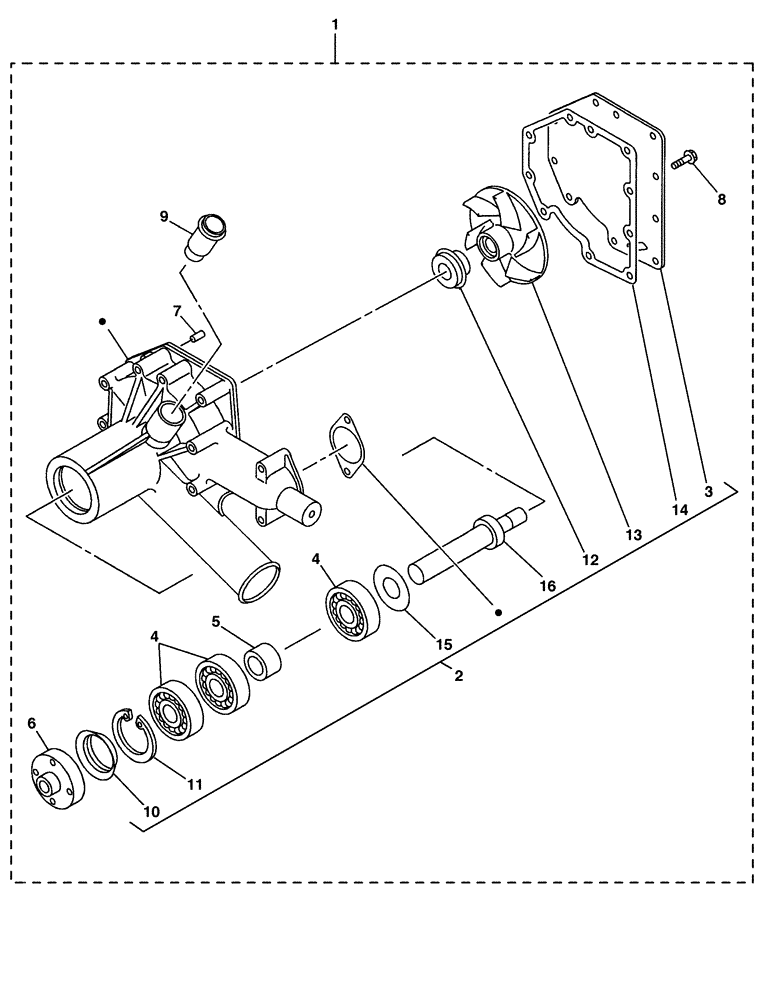

Запчасти Case CX350 (02-019-00[01]) - WATER PUMP (03) - FUEL SYSTEM

1

437924A1

PUMP, WATER

1шт.

Consists Of Ref. Numbers 2 To 16

1шт.

1

437924A1R

REMAN-WATER PUMP

CX350 CASE CRAWLER EXCAVATOR (EUROPE)

1шт.

1

437924A1C

CORE-WATER PUMP

Return Number

1шт.

2

438019A1

KIT

1шт.

Consists Of Ref. Numbers 3, 10 To 16

1шт.

3

437913A1

GASKET

1шт.

4

437889A1

BALL BEARING

1шт.

4

437890A1

BALL BEARING

2шт.

5

437918A1

BALL BEARING

1шт.

6

437923A1

HUB

1шт.

7

437891A1

DOWEL

2шт.

8

289759A1

SCREW

2шт.

9

NSS

NOT SOLD SEPARAT

1шт.

10

437919A1

RING

1шт.

11

438185A1

CIRCLIP

1шт.

12

426098A1

SEAL

1шт.

13

437916A1

IMPELLER

1шт.

14

NSS

NOT SOLD SEPARAT

1шт.

15

437873A1

WASHER

1шт.

16

437917A1

SHAFT

1шт.
