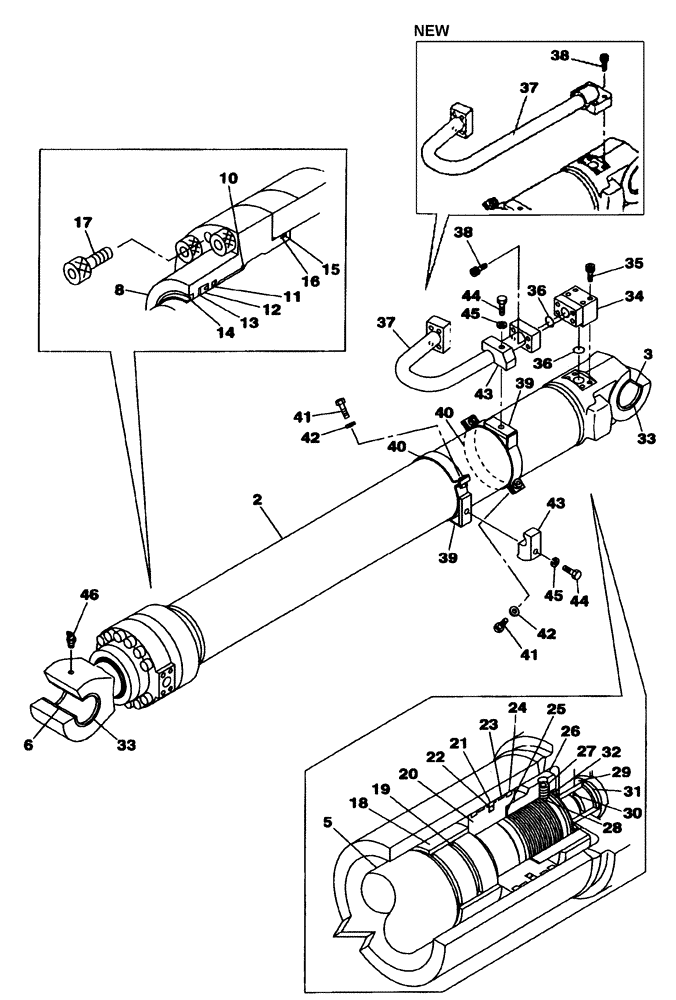

Запчасти Case CX350 (08-211-00[01]) - DIPPER CYLINDER - WITH VALVE, PRESSURE RELIEF (08) - HYDRAULICS

KSV1456

HYDRAULIC CYLINDER

1шт.

Consists Of Ref. Numbers 1 To 46

1шт.

1

LR00797

HYD CYL SLEEVE

1шт.

Consists Of Ref. Numbers 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

Sleeve, Cylinder

1шт.

3

LB00731

BUSHING

1шт.

4

LB00732

PISTON ROD

1шт.

Consists Of Ref. Numbers 5, 6

1шт.

5

NSS

NOT SOLD SEPARAT

Rod, Piston

1шт.

6

LB00731

BUSHING

1шт.

7

NSS

NOT SOLD SEPARAT

Head, Cylinder

1шт.

Consists Of Ref. Numbers 8 To 10

1шт.

8

LU00155

CYLINDER END CAP

1шт.

9

LB00735

BACK-UP RING

1шт.

10

LMU0072

RING

1шт.

11

LE00956

RING

1шт.

12

LAU0073

O-RING

1шт.

13

LE00957

BACK-UP RING

1шт.

14

LE00958

WIPER SEAL

1шт.

15

154829A1

O-RING

1шт.

16

LBU0093

BACK-UP RING

1шт.

17

LA00801

BOLT,Hex Skt Hd

12шт.

18

LE00959

BUSHING

1шт.

19

LE01180

SEAL

1шт.

20

LJ00899

JACK PISTON

1шт.

21

LEU0096

SEALING RING

1шт.

22

LE00961

BACK-UP RING

2шт.

23

LE00897

GUIDE RING

2шт.

24

LEU0098

RING

2шт.

25

LH00214

SHIM

1шт.

26

LA00799

NUT

1шт.

27

LUU0144

SCREW

1шт.

28

LPU0095

BALL

1шт.

29

LE00962

BUSHING

1шт.

30

LE00746

SEAL

1шт.

31

160128A1

STOP

2шт.

32

LA00800

RING, LOCKING

RING, LOCK

1шт.

33

155120A1

BACK-UP RING

4шт.

34

LK00354

FLANGE ASSY

1шт.

Old Model

1шт.

35

156200A1

BOLT,M14 x 95mm

M14 x 95

4шт.

Old Model

1шт.

36

154579A1

O-RING

2шт.

37

LR00799

HYD TUBE

1шт.

Old Model

1шт.

37

LR01143

HYD TUBE

1шт.

New Model

1шт.

38

164569A1

BOLT

4шт.

Old Model

1шт.

38

861-14055

HEX SOC SCREW,M14 x 55mm, Cl 12.9

4шт.

New Model

1шт.

39

LD00084

CLAMP BRACKET

2шт.

40

LD00087

CLAMP BRACKET

2шт.

41

158131A1

BOLT,High Strength, M10 x 1.5 x 35mm, Cl 10.9

4шт.

42

156227A1

WASHER

4шт.

43

155736A1

HALF-FLANGE

2шт.

44

153910A1

BOLT,High Strength, Hex, M14 x 80mm

2шт.

45

892-16014

LOCK WASHER,M14, Hvy

2шт.

46

153912A1

LUBE NIPPLE,90 Degree, 1/8"-27 NPT x 21.5mm lg

1шт.

LZ00484

SEAL KIT

1шт.

Consists Of Ref. Numbers 11 To 16, 19, 21 To 25, 30

1шт.
