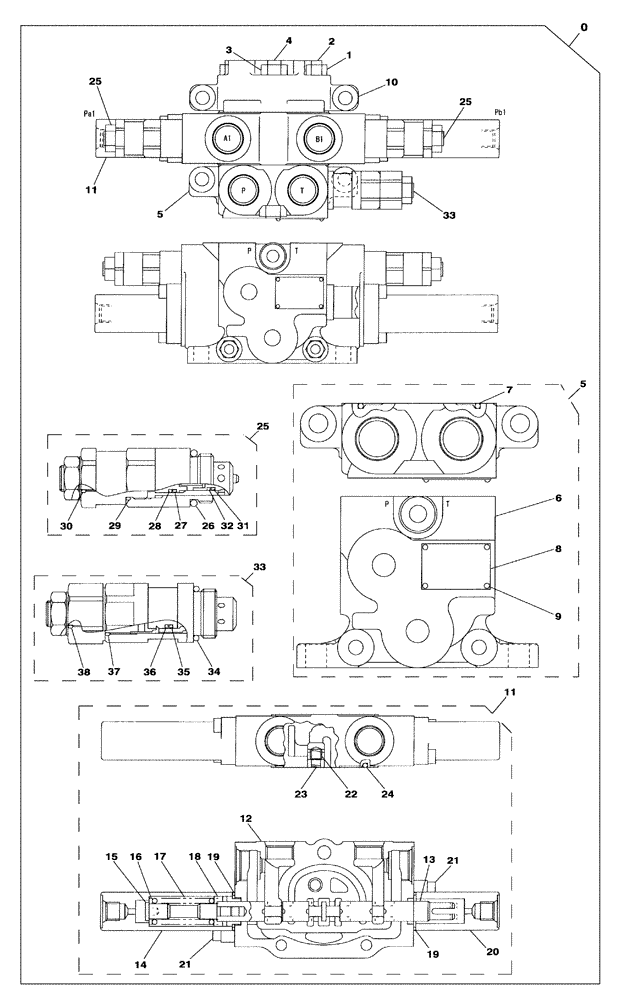

Запчасти Case CX350 (08-177-10[01]) - CONTROL VALVE - SMALL FLOW (08) - HYDRAULICS

0

168709A1

VALVE SECTION

1шт.

Consists Of Ref. Numbers 1 To 38

1шт.

1

TUC0006

SPECIAL NUT

4шт.

2

LUC0079

ROD,THREADED

THREADED ROD

2шт.

3

TUC0008

SPECIAL NUT

2шт.

4

LUC0083

THREADED ROD

1шт.

5

LNC0246

HYD VALVE SECTION

1шт.

Consists Of Ref. Numbers 6 To 9

1шт.

6

LT00115

HOUSING

1шт.

7

LBQ5228

O-RING

1шт.

8

NSS

NOT SOLD SEPARAT

1шт.

9

NSS

NOT SOLD SEPARAT

4шт.

10

LNC0015

HYD VALVE SECTION

1шт.

11

LJ00881

HYD VALVE SECTION

1шт.

Consists Of Ref. Numbers 12 To 24

1шт.

12

NSS

NOT SOLD SEPARAT

1шт.

13

NSS

NOT SOLD SEPARAT

1шт.

14

LR00821

CAP

1шт.

15

LF00036

CAP

1шт.

16

163393A1

SPRING SEAT

1шт.

17

LG00411

COMPRESSION SPRING

1шт.

18

LR00823

VALVE SEAT

1шт.

19

LBC0058

O-RING

2шт.

20

LR00822

CAP

1шт.

21

LA00810

SPECIAL BOLT

4шт.

22

TPC0004

VALVE POPPET

1шт.

23

TSC0004

SPRING

1шт.

24

LBQ5228

O-RING

1шт.

25

167387A1

VALVE, PRESSURE RELI

EF

2шт.

Consists Of Ref. Numbers 26 To 32

1шт.

26

155222A1

O-RING

1шт.

27

167362A1

O-RING

1шт.

28

167356A1

BACK-UP RING

1шт.

29

155221A1

O-RING

1шт.

30

154463A1

O-RING

1шт.

31

163323A1

O-RING

1шт.

32

164575A1

BACK-UP RING

1шт.

33

LNC0134

VALVE, PRESSURE RELI

EF

1шт.

Consists Of Ref. Numbers 34 To 38

1шт.

34

155222A1

O-RING

1шт.

35

167357A1

O-RING

1шт.

36

153952A1

BACK-UP RING

1шт.

37

155221A1

O-RING

1шт.

38

154463A1

O-RING

1шт.
