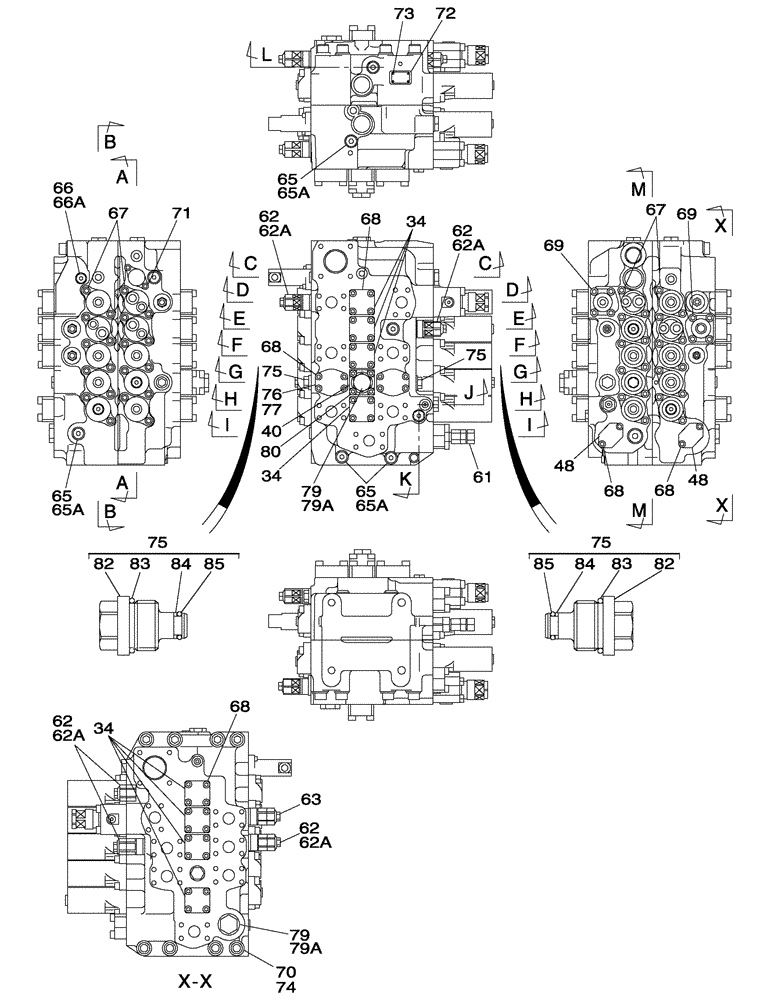

Запчасти Case CX350 (08-169-00[01]) - CONTROL VALVE (08) - HYDRAULICS

KSJ2766

VALVE, CONTROL

1шт.

Consists Of Ref. Numbers 1 To 115, See Page(s) 08-171-00-01 To 08-177-00-01 / CX330 DCH33B0101 To DCH33B0289 / CX350 DCH33B0101 And After

1шт.

34

LH00248

CAP

8шт.

40

LH00249

CAP

1шт.

48

LH00250

CAP

2шт.

61

LJ00973

VALVE, PRESSURE RELI

EF

1шт.

Consists Of Ref. Number 61A

1шт.

61a

154481A1

O-RING

1шт.

61a

153964A1

BACK-UP RING

1шт.

61a

155223A1

O-RING

1шт.

61a

154474A1

O-RING

1шт.

61a

154466A1

O-RING

1шт.

62

LJ00734

HYDRAULIC VALVE

5шт.

63

LJ00974

VALVE, PRESSURE RELI

EF

1шт.

Consists Of Ref. Number 63A

1шт.

63a

155223A1

O-RING

2шт.

63a

154463A1

O-RING

1шт.

63a

164905A1

BACK-UP RING

2шт.

63a

164906A1

O-RING

1шт.

63a

163323A1

O-RING

1шт.

63a

164575A1

BACK-UP RING

2шт.

65

163369A1

PLUG

4шт.

Consists Of Ref. Number 65A

1шт.

65a

154475A1

O-RING

1шт.

66

163972A1

PLUG

1шт.

Consists Of Ref. Number 66A

1шт.

66a

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

67

160287A1

BOLT,Hex Skt

40шт.

68

108R010Z040B

BOLT

M10 x 40

44шт.

69

108R010Z070B

BOLT

M10 x 70

8шт.

70

108R016Z130B

BOLT

M16 x 130

8шт.

71

LUC0118

BOLT,Hex Skt Hd

2шт.

72

NSS

NOT SOLD SEPARAT

1шт.

73

NSS

NOT SOLD SEPARAT

4шт.

74

156170A1

WASHER

8шт.

75

165839A1

PLUG

2шт.

Consists Of Ref. Numbers 82 To 85

1шт.

76

LR00579

PLUG

2шт.

77

168198A1

O-RING

2шт.

79

LK00302

PLUG

2шт.

Consists Of Ref. Number 79A

1шт.

79a

154503A1

O-RING

1шт.

79a

165836A1

PLUG

1шт.

80

108R010Z055B

BOLT

M10 x 55

4шт.

82

LK00327

PLUG

1шт.

83

155223A1

O-RING

1шт.

84

165779A1

RING

1шт.

85

154454A1

O-RING

1шт.
