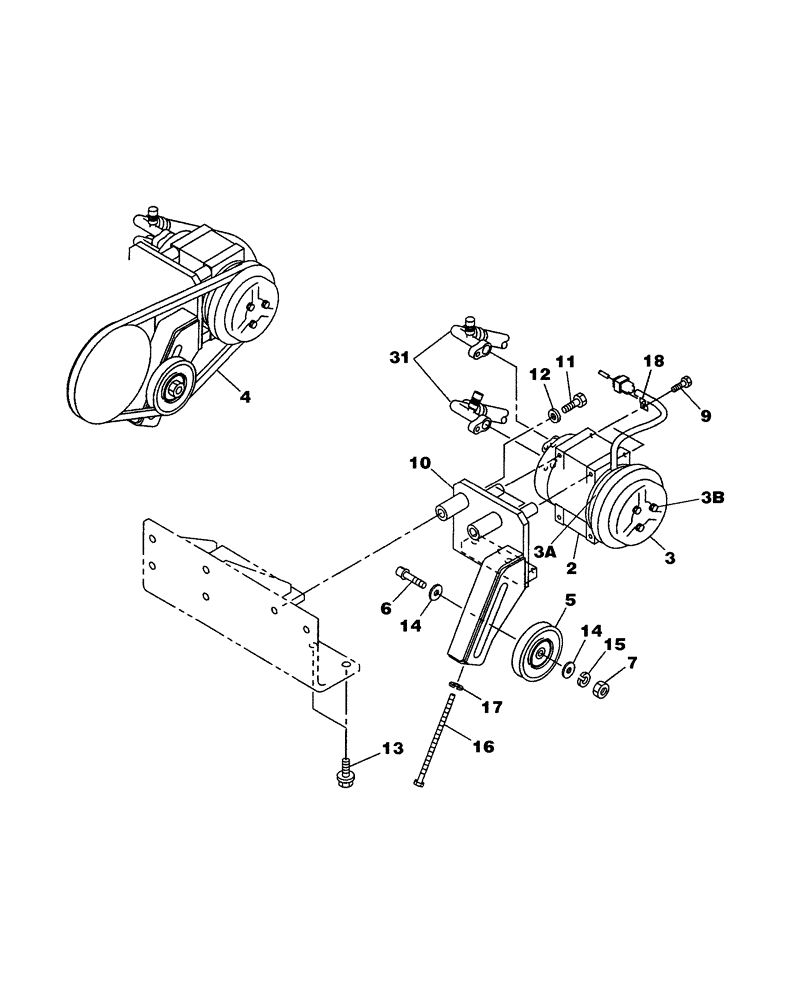

Запчасти Case CX350 (02-009-00[01]) - AIR CONDITIONING - COMPRESSOR MOUNTING (03) - FUEL SYSTEM

2

KHR3197

COMPRESSOR

1шт.

KHR3197R

REMAN-COMPRESSOR

CX330, CX350 (EUROPE)

1шт.

KHR3197C

CORE-COMPRESSOR

Return Number

1шт.

Consists Of Ref. Numbers 3, 3A, 3B

1шт.

3

KHR3198

CLUTCH

1шт.

3a

KHR3974

PROTECTIVE COVER

1шт.

3b

KHR3975

BOLT

3шт.

4

159639A1

V-BELT

Valid for ISUZU engine

1шт.

4

165843A1

V-BELT

Valid for CUMMINS engine

1шт.

5

157296A1

PULLEY

1шт.

6

157299A1

SHAFT

1шт.

7

157292A1

NUT

M10

1шт.

9

KAR0921

BOLT,Spcl

4шт.

10

KSR11340

SUPPORT

2шт.

11

827-12090

BOLT,Hex, M12 x 1.75 x 90mm, Cl 10.9

2шт.

12

150811A1

WASHER

M12

2шт.

13

158919A1

CAPTIVE WASHER SCREW,Hex Wshr Hd, M12 x 1.75 x 35mm, Cl 10.9, Spcl

2шт.

14

151977A1

WASHER

2шт.

15

892-11010

LOCK WASHER,M10

1шт.

16

KHR3171

BOLT,Spcl

M8 x 160

1шт.

17

892-11008

LOCK WASHER,8mm ID

1шт.

18

158962A1

CLIP

1шт.

31

REF

INSTRUCTION

1шт.

See Page(s) 09-059-00

1шт.

Hose

1шт.
